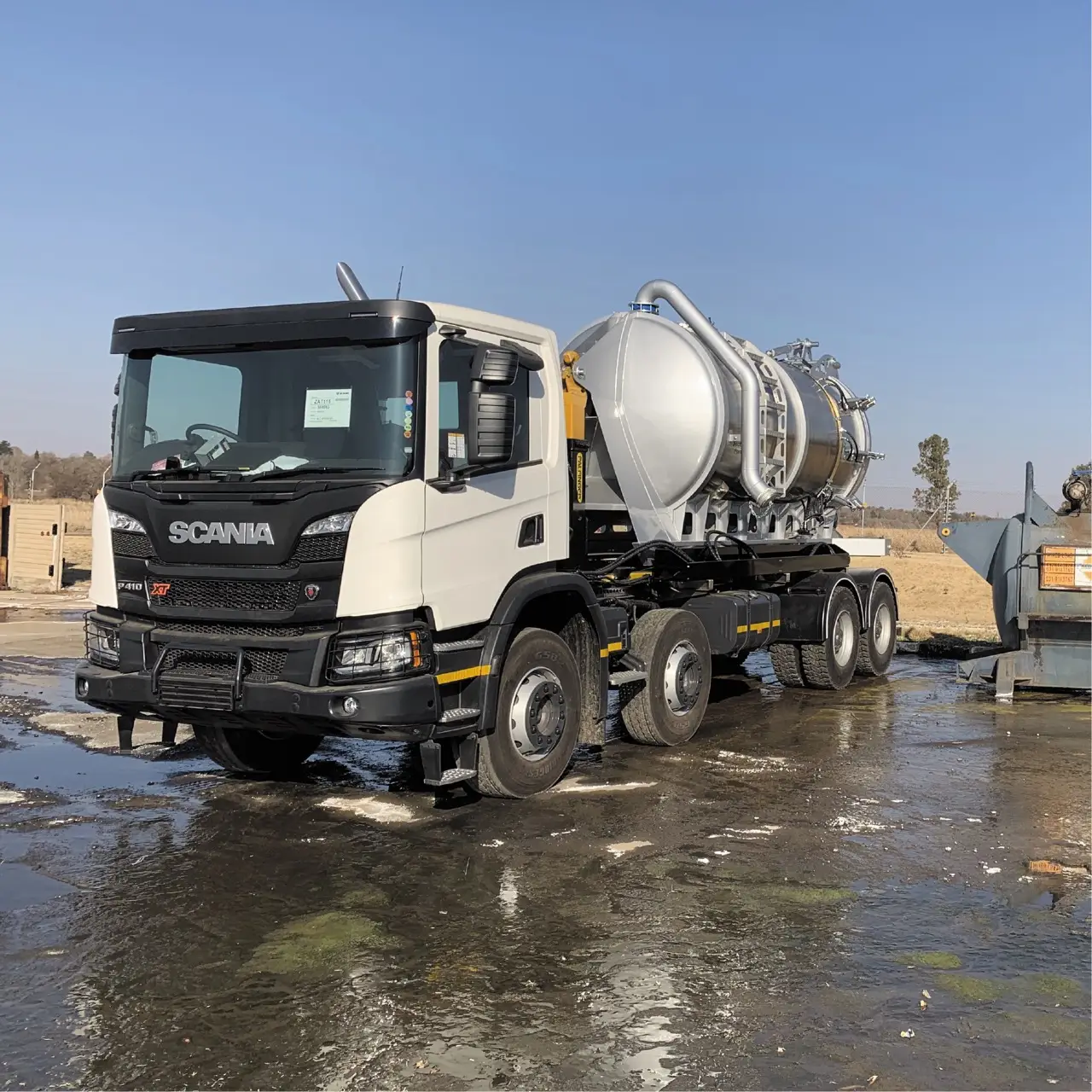

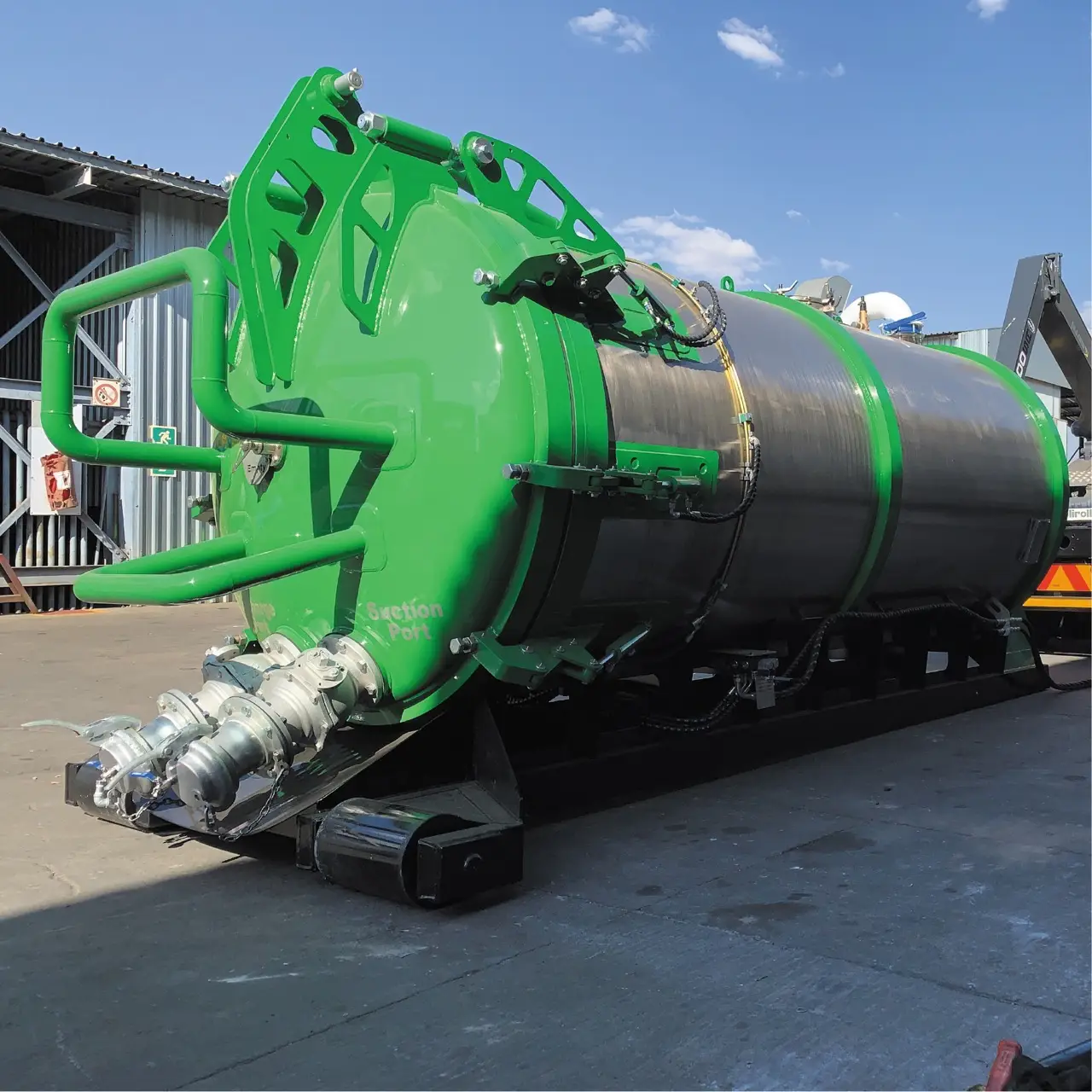

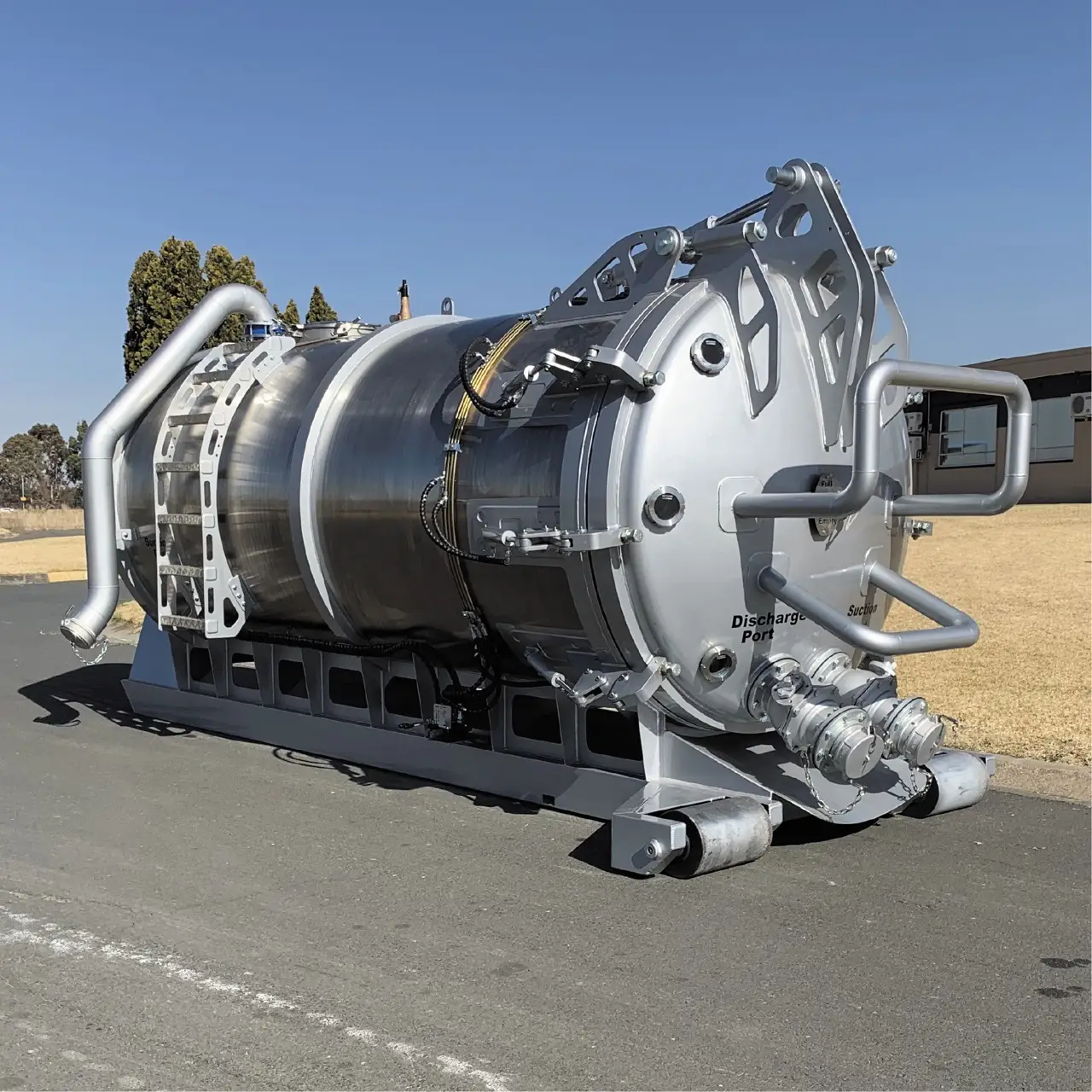

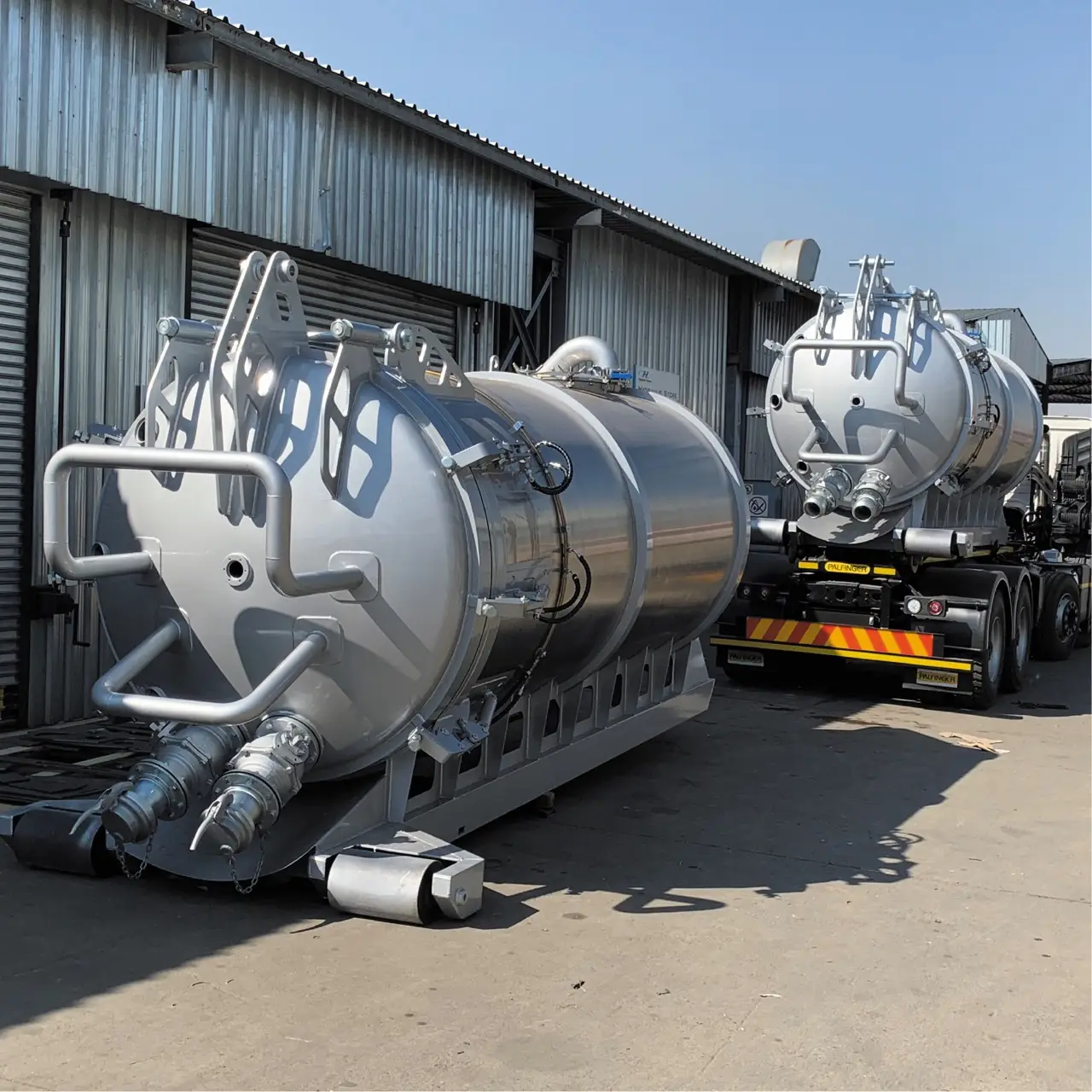

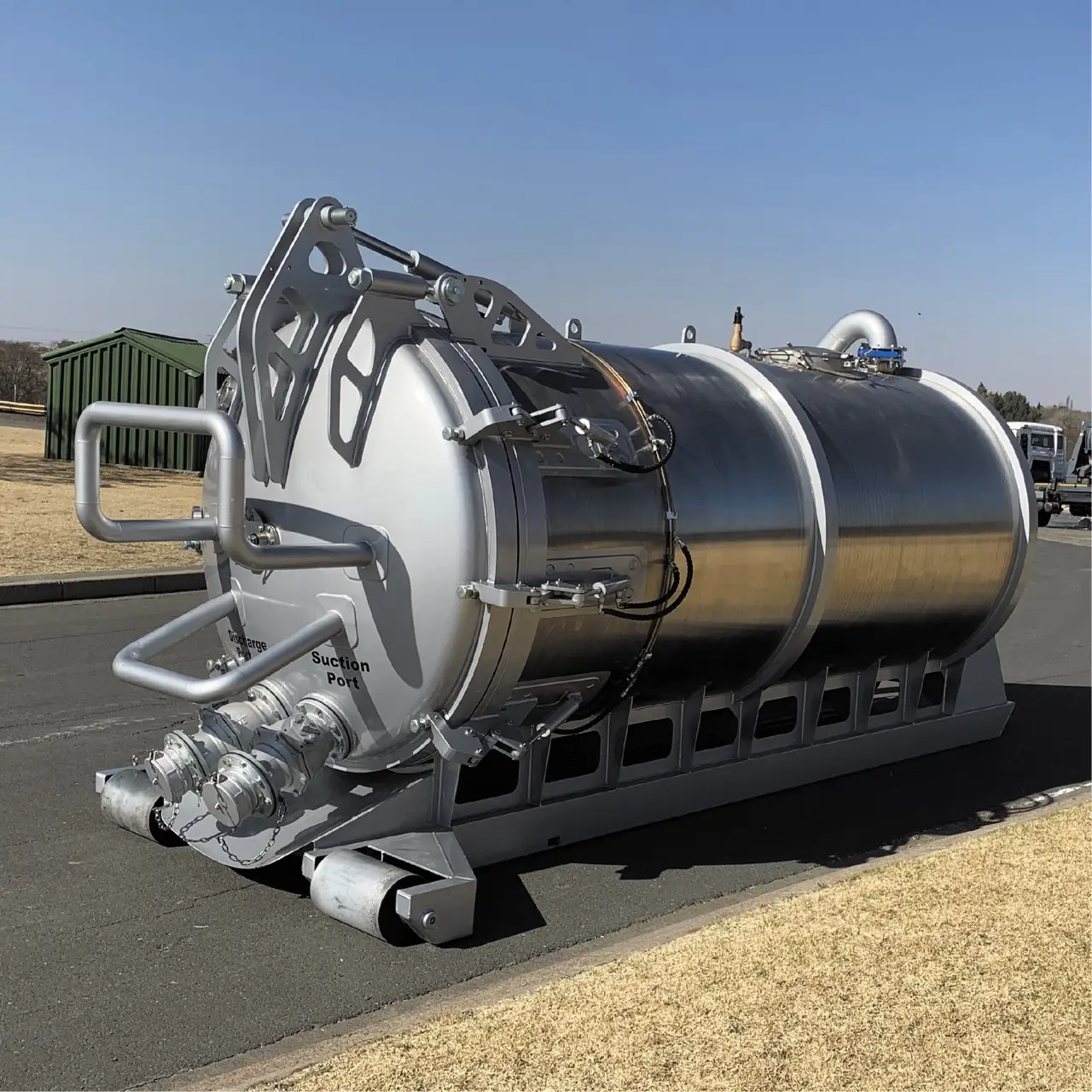

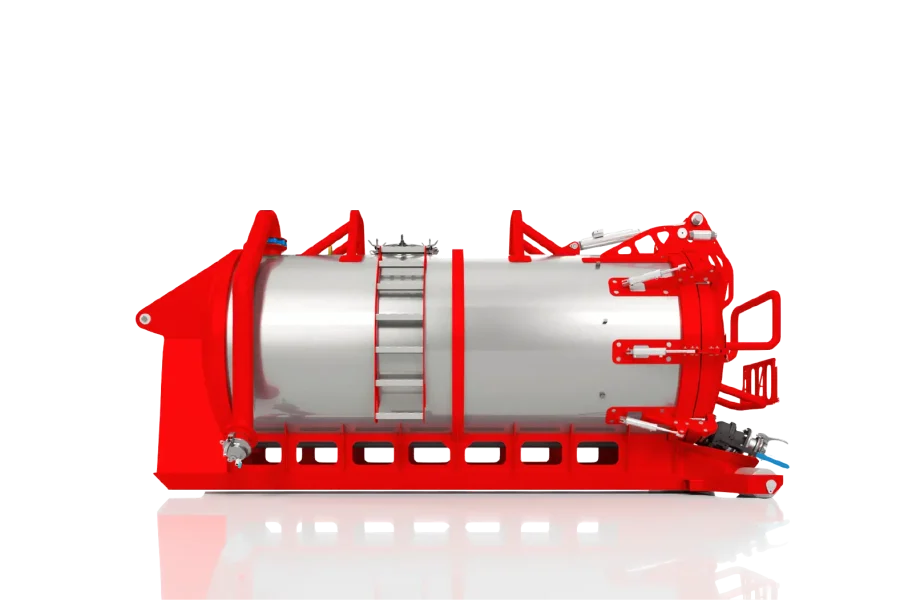

HPVR-1000 Auxiliary Tank: Expand Your Capacity with Confidence
The HPVR-1000 Auxiliary Tank is the ideal companion to any HPVR-1000 series vacuum truck, designed to significantly increase waste holding capacity without compromising on safety, durability, or efficiency. Built for seamless integration, this heavy-duty waste transport solution empowers operators to tackle larger or extended jobs with fewer interruptions.
Increased Waste Capacity, Minimal Downtime
The HPVR-1000 Auxiliary Tank allows operators to maximize their productivity by providing an additional tank for hazardous or non-hazardous waste collection. Easily connect it to your existing HPVR-1000 Truck to keep working without needing to return to a disposal site as frequently.

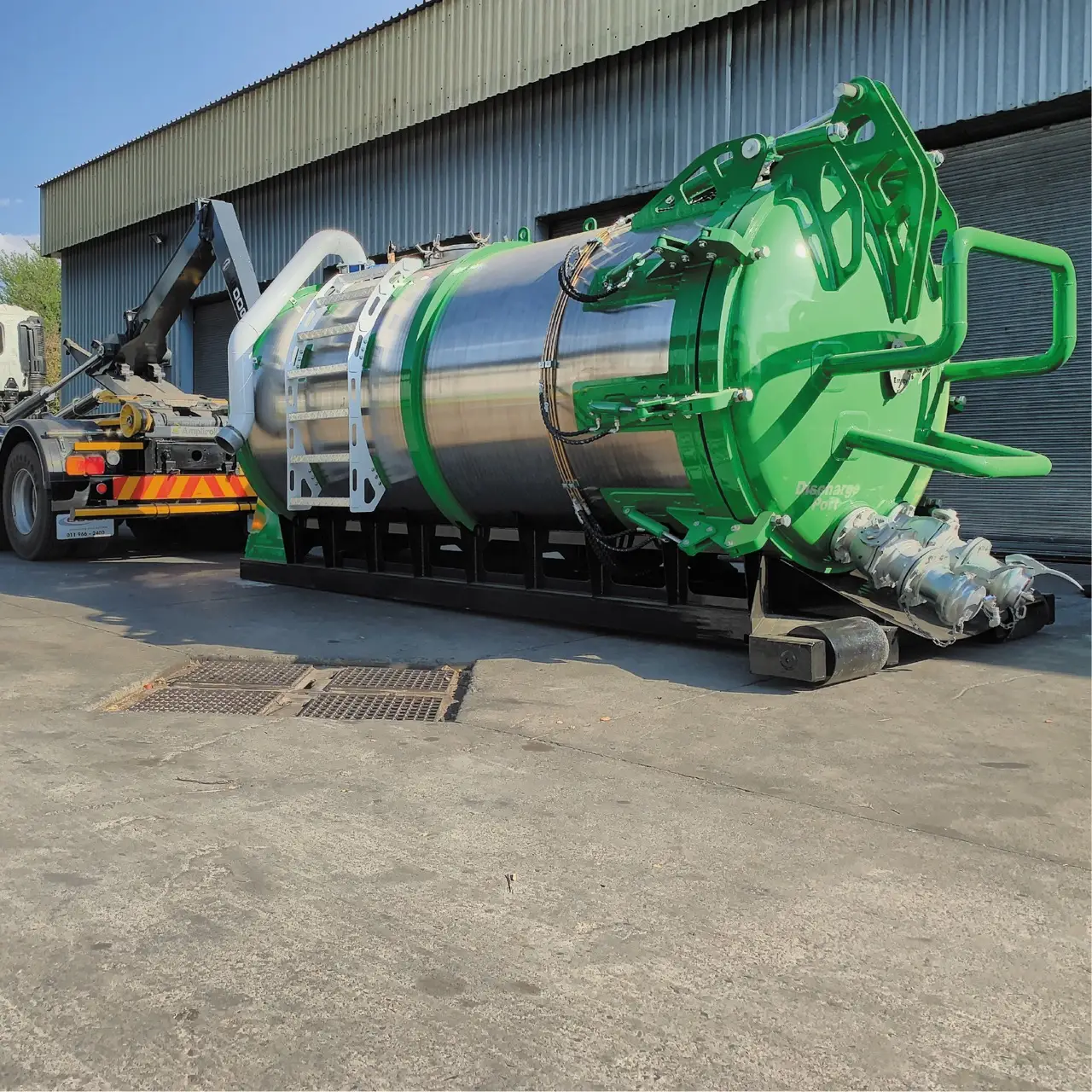

Hooklift-Ready for Easy Handling

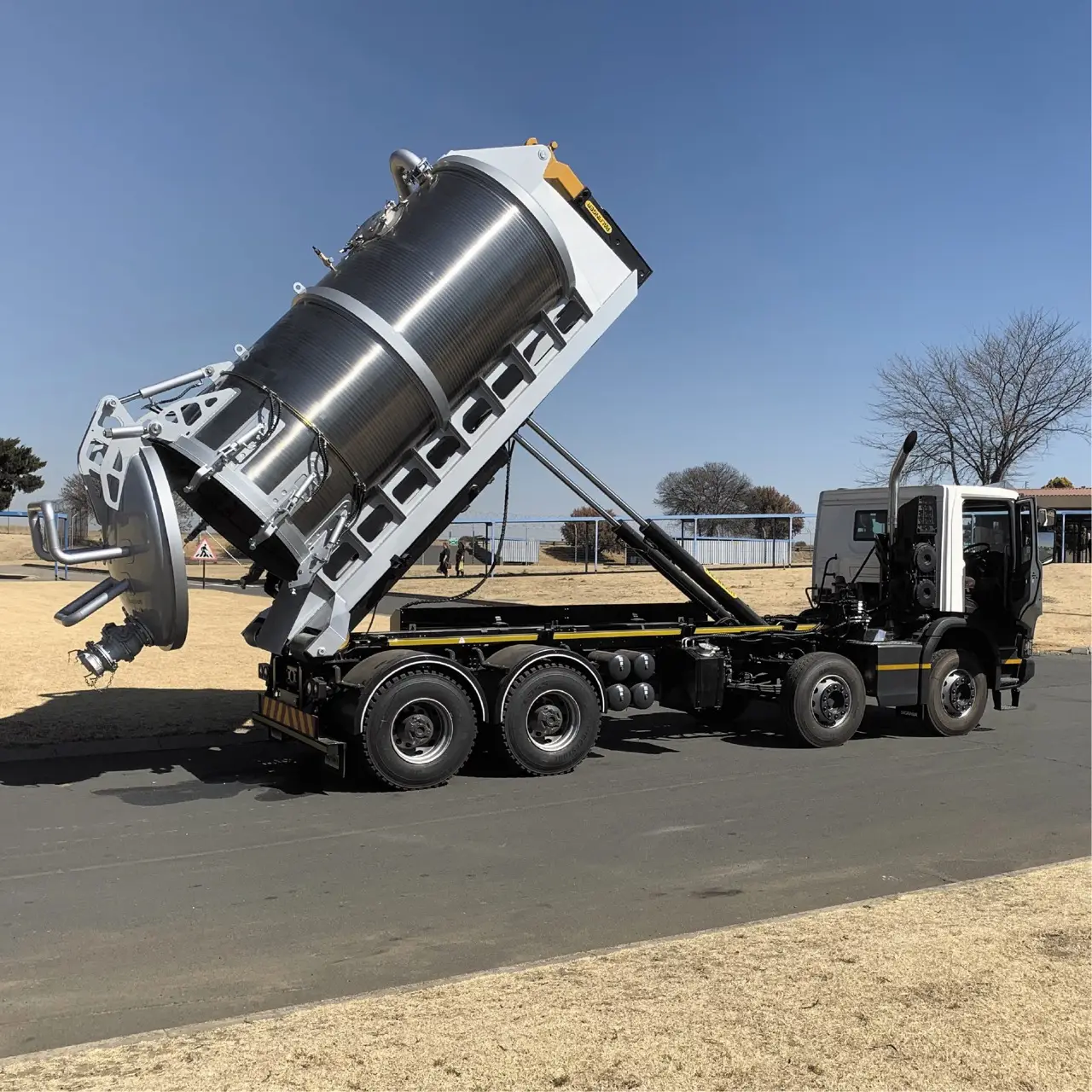

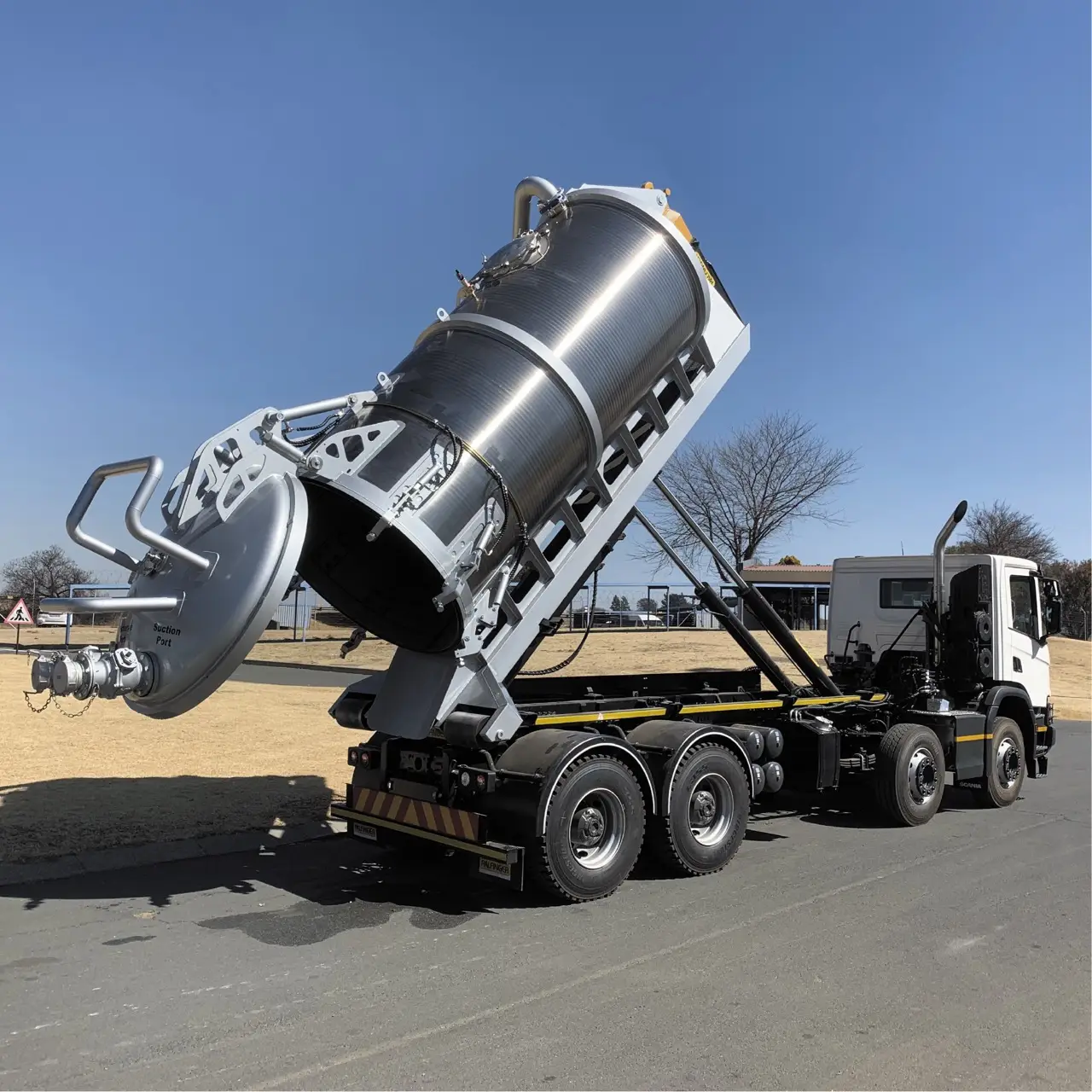

Engineered to be compatible with standard hooklift trucks, the HPVR-1000 Auxiliary Tank is easy to transport, load, and unload. Once on site, the hooklift truck’s hydraulic system powers the tipping and rear door operation, ensuring smooth and efficient dumping of contents, with no additional motors or pumps required on the tank itself.
Built Tough for Hazardous Waste
Manufactured with the same commitment to quality and durability as our flagship HPVR-1000 Vacuum Trucks, the HPVR-1000 Auxiliary Tank is constructed using heavy-duty materials suited for hazardous waste environments. Whether dealing with sludge, oils, chemicals, or fuel, this tank is built to contain and transport waste securely and reliably.
Simplify Waste Transport Operations
With no onboard mechanical systems, the HPVR-1000 Auxiliary Tank offers a low-maintenance, cost-effective solution to expand your waste handling capabilities. It’s a practical, rugged, and efficient option for industries needing flexibility and volume without adding complexity.
| Material | 304L Stainless Steel |
| Thickness | 4,5 mm |
| Ends | 6 % Toro-spherical Ends |
| Reinforcement | External Rolled Rings |
| Max Pressure | 4 Bar |
| Spillage Prevention | Spillage Chute |
| Spillage Prevention | Pneumatic Isolation Valve |
| Inlet Port Protection | Material Deflector |
| Vacuum Capacity | Dependant On Model |
| Tank Access Point | Manway (460mm) |
| Tank Overflow Protection | Primary Shutoff Valve |
| Pressure Relieve Valve | Yes |
| Rupture Protection Disc | Yes |
| Water Capacity | Dependant on model |
| Low Level Cut Out Sensor | Yes |
| Water Surge Protection | N/A |
| Filling Port | 50 mm Camlock |
| Tipping Capacity | 10 Ton |
| Tipping Angle | 45 Degrees |
| Tank Realignment | Self Aligning, Tie in system |
| Burst Valve Protection | Yes |
| Door Opening and Closing | Fully Hydraulic |
| Door Hinges | Heavy duty, adjustable door hinges |
| Door Locking System | 4 Hydraulic locking clamps |
| Suction Port | DN125 Gate Valve |
| Discharge Port | DN125 Gate Valve |
| Level Indicator | Swing Arm Ball Float |
| Door Seal | Heavy duty EPDM, wear resistant door seal |
| Flow Rate | 30 lpm |
| Oil Tank Capacity | 70 L |
| Filtration Stage 1 | Single large cyclone |
| Filtration Stage 2 | Stainless steel mesh strainer |
| Filtration Stage 3 | N/A |
| Filtration Stage 4 | N/A |
| Filtration Stage 5 | N/A |
| Engine | Split shaft |
| Fuel Tank Capacity | N/A |
| Output Power | 138 kW dual output |
| Output Torque | 1080 Nm |
| Drive Through Torque | 25 kN (35 kN intermittent) |
| Gear Ratio | 1:1.25 |
| Belts and Pulley System | Self tensioning |
| Type | Jurop Helix 300 |
| Flow Rate | 1850 m3/h, Free Flow |
| Pressure | -80 kPa |
| Non-Return Valve | Yes |
| Tank Capacity | N/A |
| Thickness | N/A |
| Material | N/A |
| Access Point | N/A |
| Filling Port | N/A |
| Drain Valve | N/A |
| Type | Udor HXR1-D 250/160 |
| Flow Rate | 267 lpm |
| Pressure | 155 Bar |
| Adjustable By Pass Valve | Yes |
| Pneumatic Actuated Three Way Diverter Valve | Yes |
| Operation | Fully hydraulic |
| Extention | 1100 mm |
| Slew Movement | 270 Degrees |
| Size | 125 mm |
| Operation | Fully hydraulic |
| Size | 1" hose |
| Length | 120 m included |
| Max Length | Up to 150 m |
| Max Pressure | 200 Bar |
| Mudgaurds | High Durability Steel and Rubber |
| Hose Tray Storage | 1x Full Length, 3CR12 Stainless Steel |
| Tool Boxes | 1x Full Length, 3CR12 Stainless Steel |
| Muck Boxes | N/A |
| Wash Down Gun | Optional |
| Walkway With Non-Slip | Full Length, Non-slip |
| Access Ladder | Non-Slip, Corrosion Resistant |
| Wireless Remote | Optional |
| Saddle Water Tanks | Optional |
| Signage Boards | N/A |
| Hoses Included |
| Revolving Emergency Light | 2x Amber Revolving Light |
| Warning Decals | Yes |
| Static Earthing Cable | N/A |
| Harness Attachement Points On Walkway | Yes |
| Unattended Lock-Out System | Yes |
| PTO Lock-Out System While Driving | Yes |
| Pneumatic In-Cab PTO On/Off Switch | Yes |
| Fast Reacting Emergency Stop | Yes |
| Detailed Component Decals | Yes |
| NDT (Non-Destructive-Testing) | Yes |
| X-ray Inspection | N/A |
| Pressure Test | Water Fill Test (1,4 Bar) |
| Operators Manual | Included |
| Maintenance Manual | Included |
| Homologated For Use In SA | Yes |
| Hazard Board Holder | N/A |
| Underrunner Bumper | SABS Approved, Chevron and Lights |
