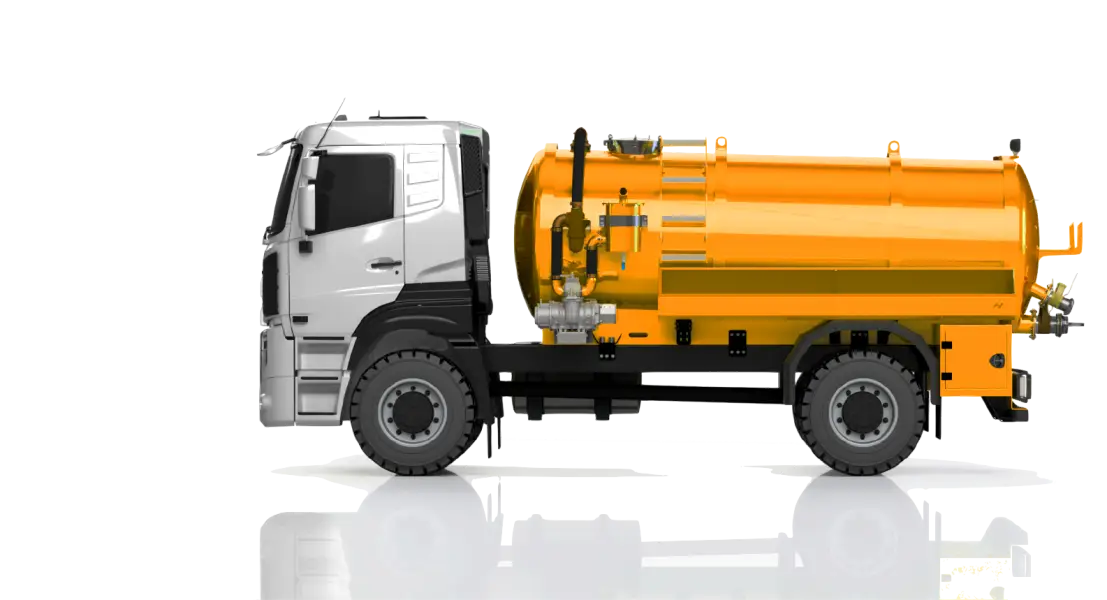

HPVR 200 Honeysucker

HPVR 200 Honeysucker Truck: Your Solution for Efficient Liquid Waste Management

The HPVR 200 honeysucker truck is a versatile and powerful vehicle, specifically built for handling liquid waste, including sewage and septic tank cleaning. This truck offers reliable and efficient operations, designed to make routine waste management easy and hassle-free. Whether in urban or rural environments, the HPVR 200 is the ideal septic tank truck for all your liquid waste needs.

Customizable Tank Sizes for Every Need

Our HPVR 200 honeysucker truck comes with customizable tank sizes, ranging from 6,000L to 20,000L, providing flexibility to handle different job requirements. The tanks, made of stainless steel, ensure long-lasting durability and protection against corrosion. Whether you’re servicing smaller urban areas or large rural sites, the HPVR 200 is the perfect septic tank truck for the job.

PTO-Driven for Maximum Power and Safety

The HPVR 200 honeysucker truck runs on a PTO (Power Take-Off) system, delivering consistent power directly from the truck’s engine. For enhanced safety, we include a PTO lockout system to prevent the vehicle from being driven while in PTO mode, protecting both the operator and the truck during operations.

Built to ISO Standards for Durability

Designed to meet the highest standards, the HPVR 200 is constructed to ISO specifications. With laser-cut components ensuring precise fitment and durability, this honeysucker truck is built to withstand the demands of regular use. High-quality materials are used throughout, ensuring your investment in the HPVR 200 pays off for years to come.

Why Choose the HPVR 200 Honeysucker Truck?

  • Jurop pump technology with a changeover valve for easy switching between suction and press modes
  • PTO-driven system with a PTO lockout feature for added safety
  • Customizable stainless steel tank options ranging from 6,000L to 20,000L
  • Designed to minimize operator error and maximize ease of use
  • Built to ISO standards with precision-engineered components for long-term durability

Ideal for Septic Tank Cleaning and Routine Waste Removal

If you’re in need of a reliable and efficient honeysucker truck or septic tank truck, the HPVR 200 is the perfect choice. Designed for ease of use, safety, and long-term durability, it offers the perfect solution for all your liquid waste management needs.

Technical Details

Material3CR12 Stainless Steel
Thickness4,5 mm
Ends6 % Toro-spherical Ends
ReinforcementExternal Rolled Rings
Max Pressure4 Bar
Spillage PreventionN/A
Spillage PreventionN/A
Inlet Port ProtectionMaterial Deflector
Vacuum CapacityDependant On Model
Tank Access PointManway (460mm)
Tank Overflow ProtectionPrimary Shutoff Valve
Pressure Relieve ValveYes
Rupture Protection DiscYes
Water CapacityN/A
Low Level Cut Out SensorN/A
Water Surge ProtectionN/A
Filling PortN/A
Tipping CapacityN/A
Tipping AngleN/A
Tank RealignmentN/A
Burst Valve ProtectionN/A
Door Opening and ClosingN/A
Door HingesN/A
Door Locking SystemN/A
Suction PortDN100 Ball Valve + Parrot Coupling
Discharge PortDN150 Gate Valve + Parrot Coupling
Level IndicatorSwing Arm Ball Float
Door SealN/A
Flow Rate30 lpm
Oil Tank Capacity120 L
Filtration Stage 1In-line Water/ Air Filter
Filtration Stage 2Stainless Steel Mesh Strainer, 300 Micron
Filtration Stage 3N/A
Filtration Stage 4N/A
Filtration Stage 5N/A
EngineN/A
Fuel Tank CapacityN/A
Output PowerN/A
Output TorqueN/A
Drive Through TorqueN/A
Gear RatioN/A
Belts and Pulley SystemN/A
TypeJurop PNR83
Flow Rate492 m3/h
Pressure-60 kPa
Non-Return ValveYes
Tank CapacityN/A
ThicknessN/A
MaterialN/A
Access PointN/A
Filling PortN/A
Drain ValveN/A
TypeN/A
Flow RateN/A
PressureN/A
Adjustable By Pass ValveN/A
Pneumatic Actuated Three Way Diverter ValveN/A
OperationN/A
ExtentionN/A
Slew MovementN/A
SizeN/A
OperationN/A
SizeN/A
LengthN/A
Max LengthN/A
Max PressureN/A
MudgaurdsHigh Durability Steel and Rubber
Hose Tray Storage2x Full Length, 3CR12 Stainless Steel
Tool BoxesN/A
Muck BoxesN/A
Wash Down GunN/A
Walkway With Non-SlipN/A
Access LadderNon-Slip, Corrosion Resistant
Wireless RemoteN/A
Saddle Water TanksN/A
Signage BoardsN/A
Hoses Included2x 8m DN100 Kanna-Flex Hoses
Revolving Emergency Light1 Amber Revolving Light
Warning DecalsYes
Static Earthing CableN/A
Harness Attachement Points On WalkwayN/A
Unattended Lock-Out SystemN/A
PTO Lock-Out System While DrivingYes
Pneumatic In-Cab PTO On/Off SwitchYes
Fast Reacting Emergency StopN/A
Detailed Component DecalsYes
NDT (Non-Destructive-Testing)N/A
X-ray InspectionN/A
Pressure TestWater Fill Test (1,4 Bar)
Operators ManualIncluded
Maintenance ManualIncluded
Homologated For Use In SAYes
Hazard Board HolderN/A
Underrunner BumperSABS Approved, Chevron and Lights

Safety and Handling Warnings

ADR Hazardous Waste 6
ADR Toxic Waste 6
ADR Toxic Gas 6
ADR Environmental Hazard

Request A Quote

Name(Required)

The Vacuum Pump System

Jurop Pumps with Changeover Valve for Improved Efficiency

Equipped with a Jurop pump, the HPVR 200 offers superior suction performance for liquid waste removal. The pump features a changeover valve, enabling users to easily switch between suction and press modes. This allows operators to quickly dump collected waste, significantly speeding up operations and increasing productivity.

Hpvr 200 Honeysucker Pump System

The Dumping System

The HPVR 200 honeysucker truck is equipped with a DN150 gate valve, designed for quick and efficient dumping of liquid waste. This feature, combined with the Jurop pump’s press mode, allows for faster and more controlled waste disposal, significantly improving operational efficiency. The combination of the gate valve and press feature ensures that the liquid waste is expelled smoothly, reducing downtime and increasing productivity during waste management tasks.

Hpvr200 Honeysucker dumping valve
