HPVR-300 Water Tanker: Drinking Or Non-Potable Water Tanker

HPVR-300 Drinking Water

R 350,000

chassis not included

ex VAT

Starting From:

The Reliable Solution for Water Transportation: HPVR300 Water Tanker

The HPVR300 Water Tanker is the ultimate solution for safe, efficient, and cost-effective water transportation. Designed with practicality and versatility in mind, this tanker is perfect for delivering drinking water and other water transport needs. Its innovative features and modular design make it an invaluable asset for municipalities, contractors, and private operators.

Built for Safety and Efficiency

Safety and efficiency are at the heart of the HPVR300 Water Tanker’s design:

Drinking Water Safe: Constructed with high-quality, food-grade polymer, the tanker ensures water remains safe and uncontaminated during transport.
Rapid Water Dispensing: A powerful water pump enables quick and efficient water dumping, minimizing downtime and enhancing productivity.

These features make the HPVR300 Water Tanker a reliable choice for delivering water where it’s needed most.

Modular Design for Maximum Flexibility

The HPVR300’s tank system is engineered for adaptability and performance:

Expandable Capacity: The modular design allows additional sections to be added as your needs grow, ensuring your investment evolves with your operations.
Water Surge Control: The modular sections also act as natural baffles, reducing water surge and ensuring safer handling, even on challenging terrain.
Easy Installation: The tanks are designed for quick and straightforward fitting, simplifying setup and maintenance.

This innovative design makes the HPVR300 Water Tanker both practical and future-proof.

Why Choose the HPVR300 Water Tanker?

Choosing the HPVR300 is more than just selecting a water tanker—it’s about investing in a solution that offers:

Cost Efficiency: A practical design ensures value for money without compromising on quality.
Versatility: Perfect for a wide range of water transport needs, from municipal supply to private operations.
Durability: Built with robust materials to withstand demanding conditions and ensure long-term reliability.
Scalability: The modular tank system grows with your business, making it a smart, adaptable investment.

Ready to Take the Next Step?

The HPVR300 Water Tanker is more than a water transport solution—it’s a commitment to efficiency, safety, and adaptability. Whether you’re delivering drinking water or managing water supply for projects, this tanker is designed to meet your needs now and in the future.

Gallery

Technical Details

Tank Construction

Material	304L Stainless Steel
Thickness	4,5 mm
Ends	6 % Toro-spherical Ends
Reinforcement	External Rolled Rings
Max Pressure	4 Bar
Spillage Prevention	Spillage Chute
Spillage Prevention	Pneumatic Isolation Valve
Inlet Port Protection	Material Deflector

Vacuum Compartment

Vacuum Capacity	Dependant On Model
Tank Access Point	Manway (460mm)
Tank Overflow Protection	Primary Shutoff Valve
Pressure Relieve Valve	Yes
Rupture Protection Disc	Yes

Water Tank Compartment

Water Capacity	Dependant on model
Low Level Cut Out Sensor	Yes
Water Surge Protection	N/A
Filling Port	50 mm Camlock

Tank Tipping

Tipping Capacity	10 Ton
Tipping Angle	45 Degrees
Tank Realignment	Self Aligning, Tie in system
Burst Valve Protection	Yes

Rear Door/ Tank End

Door Opening and Closing	Fully Hydraulic
Door Hinges	Heavy duty, adjustable door hinges
Door Locking System	4 Hydraulic locking clamps
Suction Port	DN125 Gate Valve
Discharge Port	DN125 Gate Valve
Level Indicator	Swing Arm Ball Float
Door Seal	Heavy duty EPDM, wear resistant door seal

Hydraulic System

Flow Rate	30 lpm
Oil Tank Capacity	70 L

Filtration

Filtration Stage 1	Single large cyclone
Filtration Stage 2	Stainless steel mesh strainer
Filtration Stage 3	N/A
Filtration Stage 4	N/A
Filtration Stage 5	N/A

Pump drive system

Engine	Split shaft
Fuel Tank Capacity	N/A
Output Power	138 kW dual output
Output Torque	1080 Nm
Drive Through Torque	25 kN (35 kN intermittent)
Gear Ratio	1:1.25
Belts and Pulley System	Self tensioning

Vacuum Pump

Type	Jurop Helix 300
Flow Rate	1850 m3/h, Free Flow
Pressure	-80 kPa
Non-Return Valve	Yes

Liquid Ring Pump Water Tank

Tank Capacity	N/A
Thickness	N/A
Material	N/A
Access Point	N/A
Filling Port	N/A
Drain Valve	N/A

HP Pump

Type	Udor HXR1-D 250/160
Flow Rate	267 lpm
Pressure	155 Bar
Adjustable By Pass Valve	Yes
Pneumatic Actuated Three Way Diverter Valve	Yes

Suction Boom

Operation	Fully hydraulic
Extention	1100 mm
Slew Movement	270 Degrees
Size	125 mm

Hose Reel

Operation	Fully hydraulic
Size	1" hose
Length	120 m included
Max Length	Up to 150 m
Max Pressure	200 Bar

Accessories

Mudgaurds	High Durability Steel and Rubber
Hose Tray Storage	1x Full Length, 3CR12 Stainless Steel
Tool Boxes	1x Full Length, 3CR12 Stainless Steel
Muck Boxes	N/A
Wash Down Gun	Optional
Walkway With Non-Slip	Full Length, Non-slip
Access Ladder	Non-Slip, Corrosion Resistant
Wireless Remote	Optional
Saddle Water Tanks	Optional
Signage Boards	N/A
Hoses Included

Safety

Revolving Emergency Light	2x Amber Revolving Light
Warning Decals	Yes
Static Earthing Cable	N/A
Harness Attachement Points On Walkway	Yes
Unattended Lock-Out System	Yes
PTO Lock-Out System While Driving	Yes
Pneumatic In-Cab PTO On/Off Switch	Yes
Fast Reacting Emergency Stop	Yes
Detailed Component Decals	Yes

Compliance

NDT (Non-Destructive-Testing)	Yes
X-ray Inspection	N/A
Pressure Test	Water Fill Test (1,4 Bar)
Operators Manual	Included
Maintenance Manual	Included
Homologated For Use In SA	Yes
Hazard Board Holder	N/A
Underrunner Bumper	SABS Approved, Chevron and Lights

Safety and Handling Warnings

Downloads

Download Spec Drawings

Download Spec Sheets

Request A Quote

HPVR-500 Models(Required)

Preferred Chassis(Required)

Company Name(Required)

Name(Required)

First Last

Phone(Required)

Email(Required)

Budget(Required)

Timeline(Required)

How Did You Hear About Us?(Required)

Notes

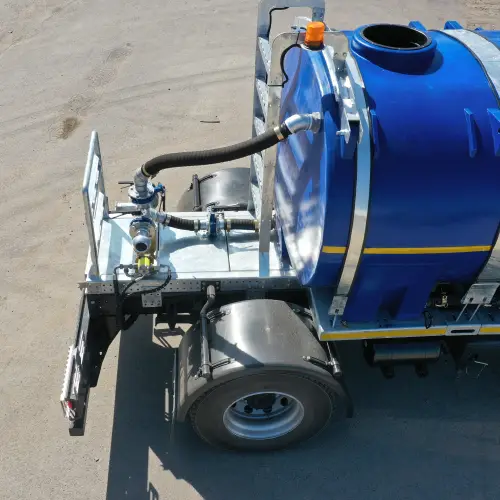

The Pump System

The HPVR300 Water Tanker’s pump system ensures efficient offloading with ample water pressure for quick and reliable discharge. Powered by the truck’s PTO through a robust hydraulic system, this setup provides seamless operation and consistent performance, making water delivery faster and more efficient.

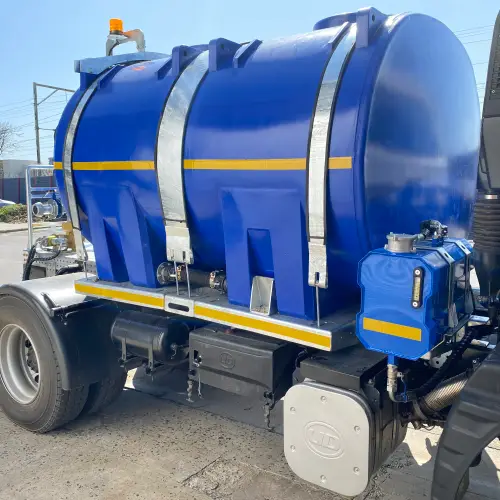

The Tank

The HPVR300 Water Tanker is designed for safe and reliable water transport. Its modular tank system allows for easy capacity expansion and naturally controls water surge for safer handling. Built with high-quality, food-grade materials, it ensures drinking water safety while a powerful pump enables quick and efficient dispensing. Durable and adaptable, the HPVR300 is a cost-effective solution for any water transport needs.
