HPVR-500 Combi: Vacuum Truck for Municipal Waste Management

HPVR-500 Combi

R 2 454 000

chassis not included

ex VAT

Starting From:

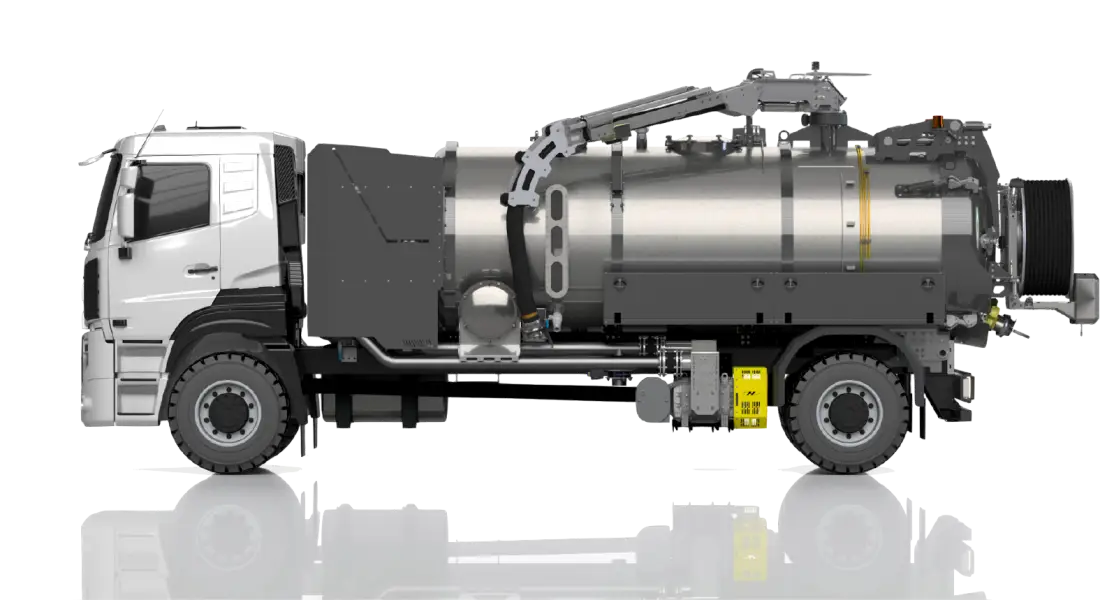

The Solution for Municipal Waste Management: HPVR-500 Combination Truck

The HPVR500 Combi is designed to excel in municipality work, easily manoeuvring through tight urban spaces and narrow township roads. Built on a versatile 4×2 chassis, this combination truck handles a range of municipal tasks such as sewage line clearing, storm drain maintenance, and sludge removal. It is an indispensable asset for waste management companies, municipalities, construction firms, and private contractors.

Our engineers designed the HPVR500 Combi to address common city operation challenges. The powerful yet quiet suction pump allows operators to work efficiently and quickly, minimizing downtime and enabling faster transitions between job sites. This efficiency enhances productivity and reduces operational costs.

Durability is key to the HPVR500 Combi’s design. Through extensive research and feedback, we’ve identified the parts most prone to wear and replaced them with stronger components. This ensures the truck remains operational under the most demanding conditions. This commitment to quality means the HPVR500 Combi is not just a purchase but a long-term investment in reliability and performance.

For larger capacity needs, we offer additional HPVR500 models with bigger tank sizes, built on a 6×4 chassis, maintaining the same level of efficiency.

The HPVR500 Combi is equipped with all necessary tools and features to handle municipal tasks seamlessly. Its all-around capability makes it perfect for any industrial vacuum truck needs, whether clearing blocked drains, managing urban waste, or supporting construction and mining operations.

By choosing the HPVR500 Combi, you’re not just solving immediate operational challenges; you’re investing in a solution designed to adapt and excel over time. Explore the HPVR500 Combi and discover why it stands out as the ultimate vacuum truck, honey sucker truck, and industrial combination truck for your needs.

Gallery

Technical Details

Tank Construction

Material	304L Stainless Steel
Thickness	4,5 mm
Ends	6 % Toro-spherical Ends
Reinforcement	External Rolled Rings
Max Pressure	4 Bar
Spillage Prevention	Spillage Chute
Spillage Prevention	Pneumatic Isolation Valve
Inlet Port Protection	Material Deflector

Vacuum Compartment

Vacuum Capacity	Dependant On Model
Tank Access Point	Manway (460mm)
Tank Overflow Protection	Primary Shutoff Valve
Pressure Relieve Valve	Yes
Rupture Protection Disc	Yes

Water Tank Compartment

Water Capacity	Dependant on model
Low Level Cut Out Sensor	Yes
Water Surge Protection	N/A
Filling Port	50 mm Camlock

Tank Tipping

Tipping Capacity	10 Ton
Tipping Angle	45 Degrees
Tank Realignment	Self Aligning, Tie in system
Burst Valve Protection	Yes

Rear Door/ Tank End

Door Opening and Closing	Fully Hydraulic
Door Hinges	Heavy duty, adjustable door hinges
Door Locking System	4 Hydraulic locking clamps
Suction Port	DN125 Gate Valve
Discharge Port	DN125 Gate Valve
Level Indicator	Swing Arm Ball Float
Door Seal	Heavy duty EPDM, wear resistant door seal

Hydraulic System

Flow Rate	30 lpm
Oil Tank Capacity	70 L

Filtration

Filtration Stage 1	Single large cyclone
Filtration Stage 2	Stainless steel mesh strainer
Filtration Stage 3	N/A
Filtration Stage 4	N/A
Filtration Stage 5	N/A

Pump drive system

Engine	Split shaft
Fuel Tank Capacity	N/A
Output Power	138 kW dual output
Output Torque	1080 Nm
Drive Through Torque	25 kN (35 kN intermittent)
Gear Ratio	1:1.25
Belts and Pulley System	Self tensioning

Vacuum Pump

Type	Jurop Helix 300
Flow Rate	1850 m3/h, Free Flow
Pressure	-80 kPa
Non-Return Valve	Yes

Liquid Ring Pump Water Tank

Tank Capacity	N/A
Thickness	N/A
Material	N/A
Access Point	N/A
Filling Port	N/A
Drain Valve	N/A

HP Pump

Type	Udor HXR1-D 250/160
Flow Rate	267 lpm
Pressure	155 Bar
Adjustable By Pass Valve	Yes
Pneumatic Actuated Three Way Diverter Valve	Yes

Suction Boom

Operation	Fully hydraulic
Extention	1100 mm
Slew Movement	270 Degrees
Size	125 mm

Hose Reel

Operation	Fully hydraulic
Size	1" hose
Length	120 m included
Max Length	Up to 150 m
Max Pressure	200 Bar

Accessories

Mudgaurds	High Durability Steel and Rubber
Hose Tray Storage	1x Full Length, 3CR12 Stainless Steel
Tool Boxes	1x Full Length, 3CR12 Stainless Steel
Muck Boxes	N/A
Wash Down Gun	Optional
Walkway With Non-Slip	Full Length, Non-slip
Access Ladder	Non-Slip, Corrosion Resistant
Wireless Remote	Optional
Saddle Water Tanks	Optional
Signage Boards	N/A
Hoses Included

Safety

Revolving Emergency Light	2x Amber Revolving Light
Warning Decals	Yes
Static Earthing Cable	N/A
Harness Attachement Points On Walkway	Yes
Unattended Lock-Out System	Yes
PTO Lock-Out System While Driving	Yes
Pneumatic In-Cab PTO On/Off Switch	Yes
Fast Reacting Emergency Stop	Yes
Detailed Component Decals	Yes

Compliance

NDT (Non-Destructive-Testing)	Yes
X-ray Inspection	N/A
Pressure Test	Water Fill Test (1,4 Bar)
Operators Manual	Included
Maintenance Manual	Included
Homologated For Use In SA	Yes
Hazard Board Holder	N/A
Underrunner Bumper	SABS Approved, Chevron and Lights

Safety and Handling Warnings

Downloads

Download Spec Sheets for HPVR-500 CE

Download Spec Sheets for HPVR-500 CF

Download Brochure

Download Spec Sheets for HPVR-500 CT

Request A Quote

HPVR-500 Models(Required)

Preferred Chassis(Required)

Company Name(Required)

Name(Required)

First Last

Phone(Required)

Email(Required)

Budget(Required)

Timeline(Required)

How Did You Hear About Us?(Required)

Notes

The Vacuum Pump System

The HPVR-500 Combi, equipped with a robust Jurop Vacuum pump, ensures reliable performance and long life. Featuring advanced overheating protection, this low-maintenance pump operates quietly and efficiently, delivering a flow rate of 1850 m³/h at 0% vacuum. A stainless steel mesh strainer safeguards the pump, while a one-way valve guarantees uni-directional flow.

Highpoint Manufacturing Jurop Helix 300 Large

The Jetting System

The HPVR-500 Combi is equipped with a durable Udor High Pressure Pump, protected by dual anjet filters to prevent small particles from entering. Enhanced safety features include a pressure relief valve and a pneumatic-actuated shut-off valve for the pump supply line. The pump, capable of 267 lpm at 155 bar, is connected to a three-position pneumatic valve allowing water to flow back into the tank during nozzle changes, ensuring efficient operation and water conservation.

Highpoint Manufacturing Udor HP Pump Large

The Hose Reel

The HPVR500-combi features a state-of-the-art hose reel at the rear, fully operated hydraulically for winding, unwinding, and swinging open and closing. It comes standard with a 120m long 1″ jetting hose and includes a work light to illuminate the work area.
The control panel, conveniently placed on the hose reel, is simplified to reduce operator error and includes a fast-acting emergency stop button.

The Suction Boom

The HPVR500-combi is equipped with a highly efficient suction boom that comes standard with a 125mm suction hose. This suction boom is fully hydraulically operated, enhancing ease of use for operators on site. It can rotate 270 degrees, extend up to 1100mm, and move up and down, allowing for exceptional maneuverability. This design enables operators to position the suction hose in hard-to-reach places, such as over fences, making it an invaluable feature for various applications. Designed for optimal functionality, this suction boom significantly enhances the operational capability

Highpoint Manufacturing Suction Boom Large

Reliability and Minimal Downtime
The HPVR500 Combi is meticulously designed for exceptional reliability, ensuring minimal downtime and consistent operations. Engineered to endure the toughest urban environments, it guarantees uninterrupted performance.

Powerful Performance
Featuring high-capacity pumps that surpass minimum specifications, the HPVR500 Combi ensures powerful and efficient performance. Designed to handle storm water, sewage, sludges, and mud, it delivers reliable results, making it ideal for city work.

Ease of Operation and Maintenance
The HPVR500 Combi is built for simplicity in operation and maintenance. With hydraulic systems that reduce operator fatigue and user-friendly controls, it enhances operational efficiency while keeping maintenance straightforward. Routine checks are easy, requiring only attention to oil levels and grease nipples, with scheduled services aligned with the chassis company.

Customizable Capacity Options
The HPVR500 Combi offers various tank sizes to meet specific client needs, ensuring optimal capacity without compromising efficiency. This customization guarantees that you have the right setup for your operations.

Operator-Friendly Design
The HPVR500 Combi prioritizes operator comfort and safety with hydraulic operation, fast-acting emergency stops, PTO driver lockout systems, and more. Comprehensive training ensures operators are well-equipped to handle the equipment safely and efficiently.

Durability and Reduced Wear
Our precise chassis matching process minimizes wear and tear, extending the lifespan of both the truck and its components. This careful design consideration ensures seamless operation and durability.

Quality-Controlled Parts
Manufacturing all parts in-house allows for stringent quality control, ensuring high-quality components and reducing costs. This also guarantees the availability of parts for swift and accurate replacements, minimizing downtime.

Compliance with International Standards
The HPVR500 Combi meets rigorous international standards, including ISO 9001, ISO 45001, ISO 14001, and ISO 3834-2. This compliance ensures safety, efficiency, and environmental responsibility.

Cost-Effective Operation
Designed for efficiency, the HPVR500 Combi features powerful pumps that operate at full power with low engine RPM, reducing fuel consumption. In-house part manufacturing keeps maintenance and repair costs low, ensuring a cost-effective solution.

Exceptional Customer Service
Our dedicated service team provides fast turnaround times for maintenance and repairs, prioritizing customer satisfaction. With three branches available, consistent customer service and product support are always within reach.

Versatile Applications
Specially designed for urban environments, the HPVR500 Combi handles storm water, sewage, sludges, and mud efficiently. Its versatility makes it an essential tool for city operations and a variety of industrial applications.
