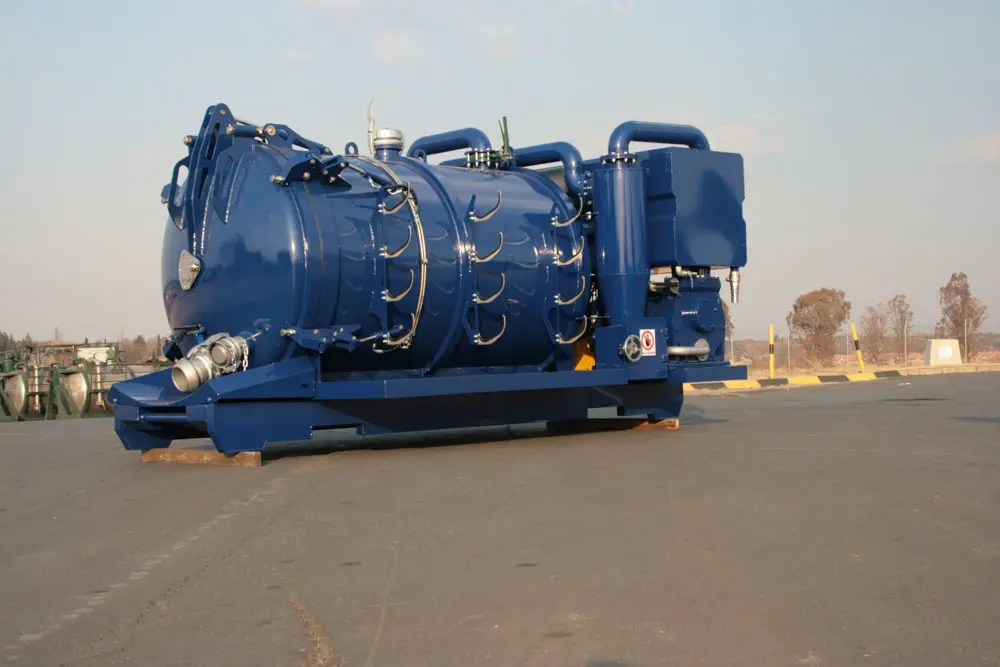

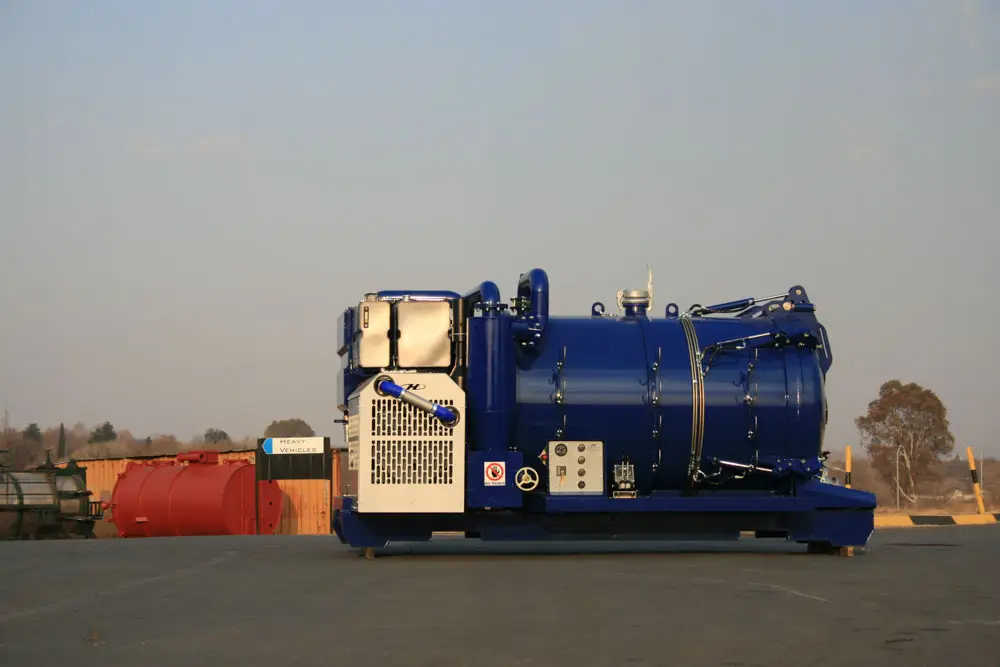

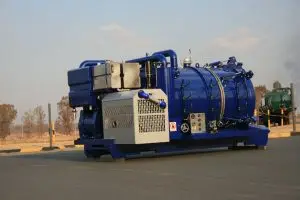

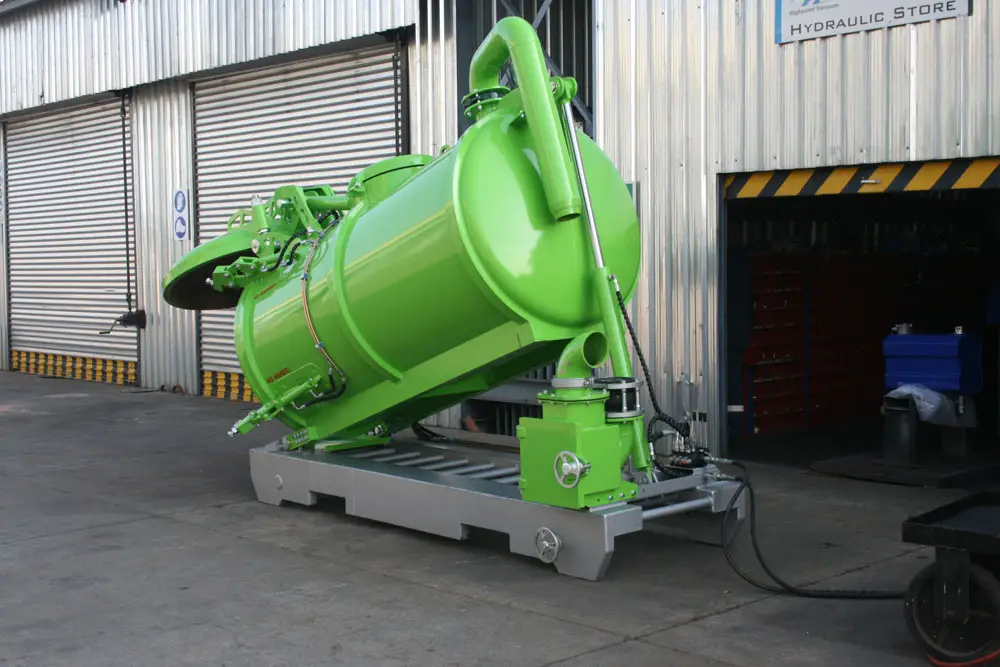

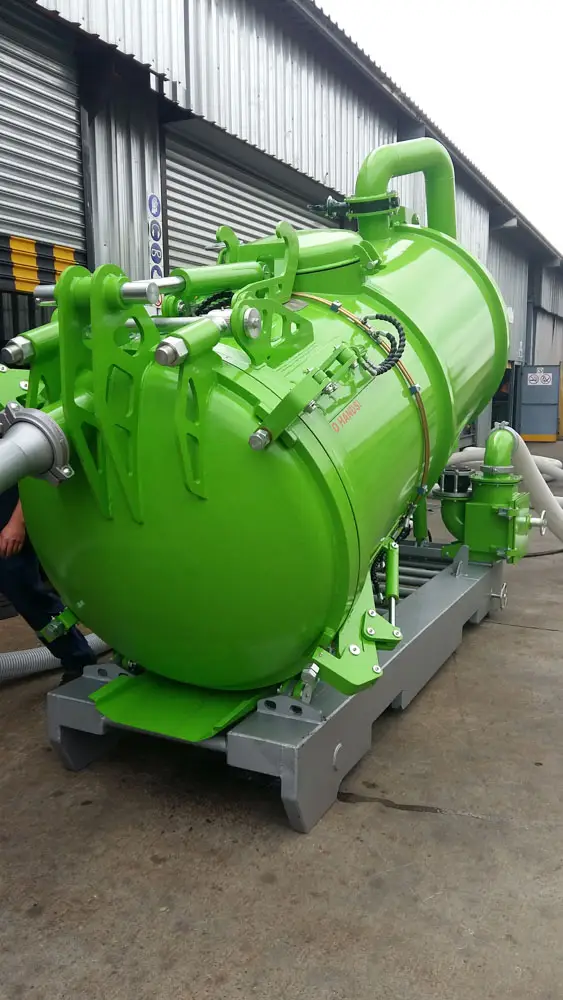

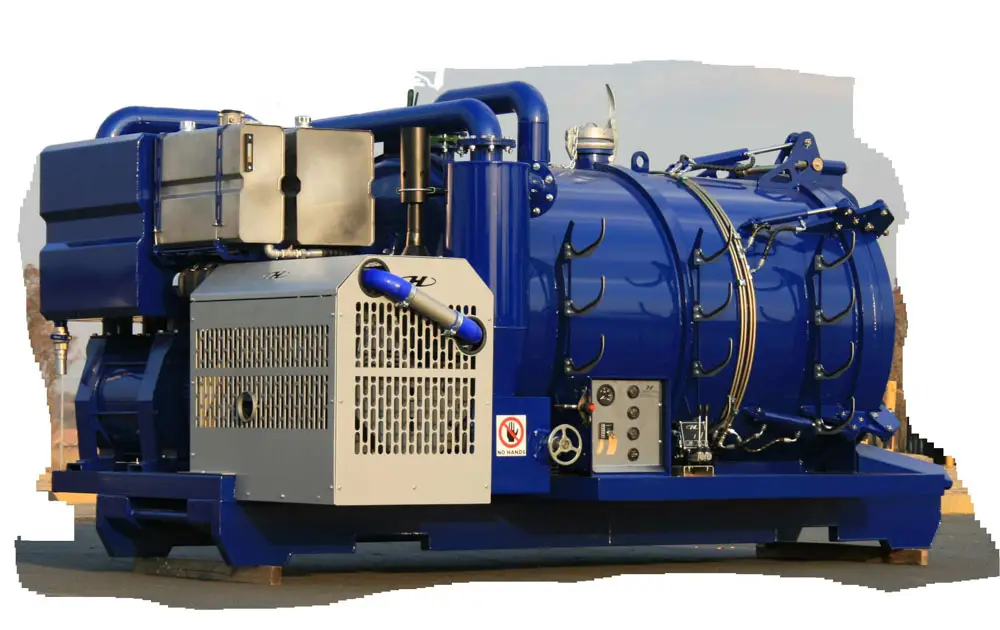

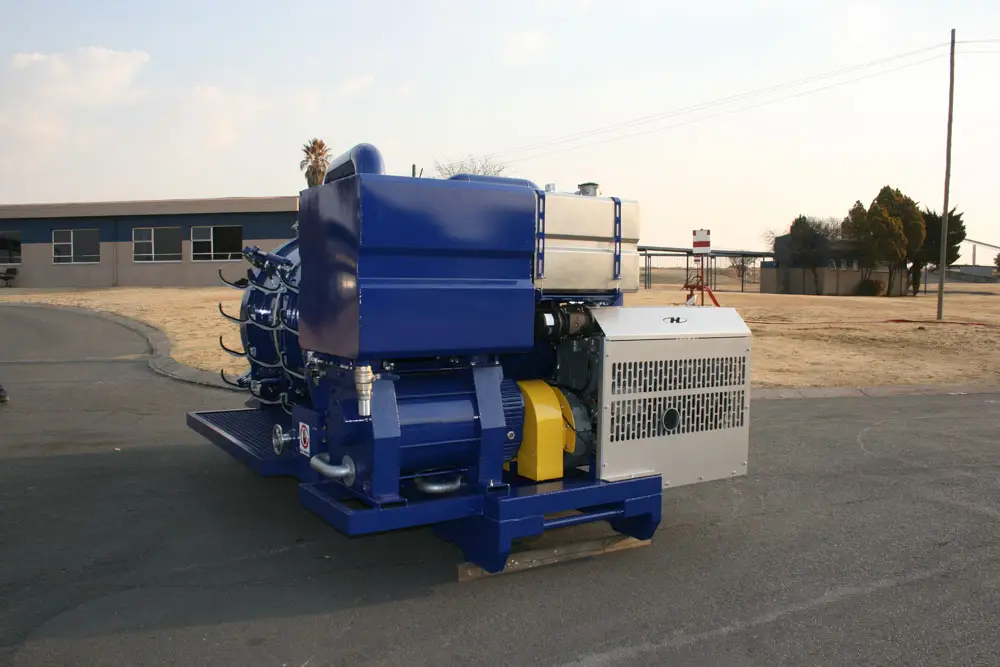

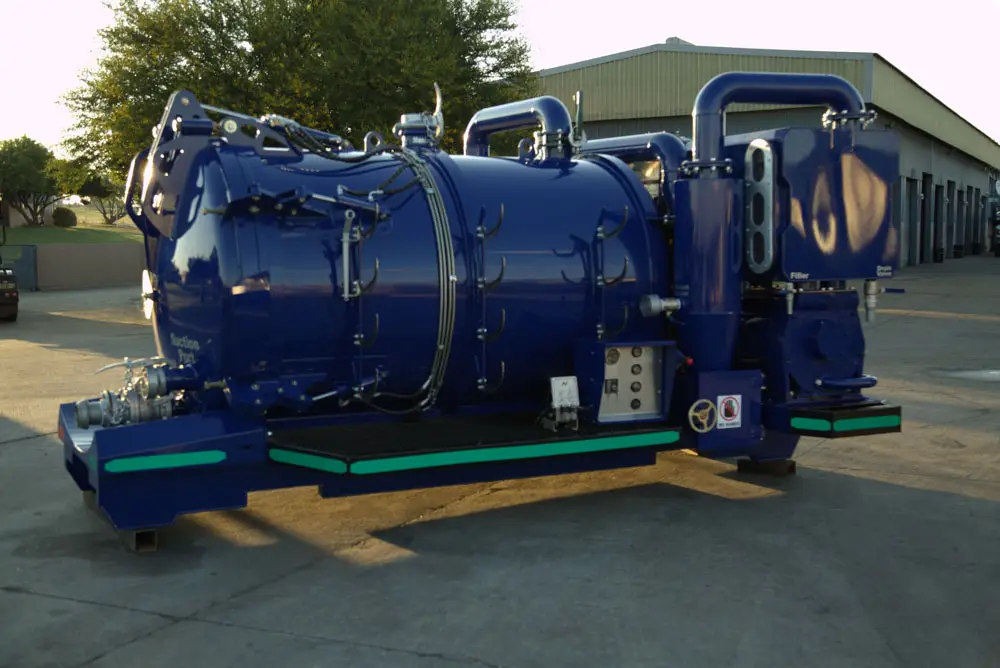

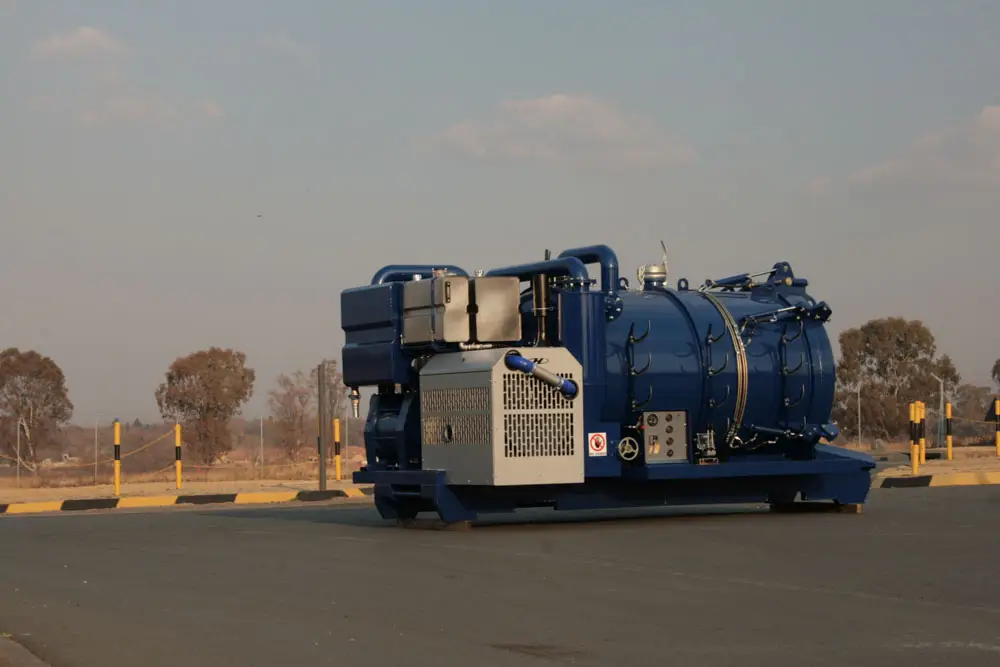

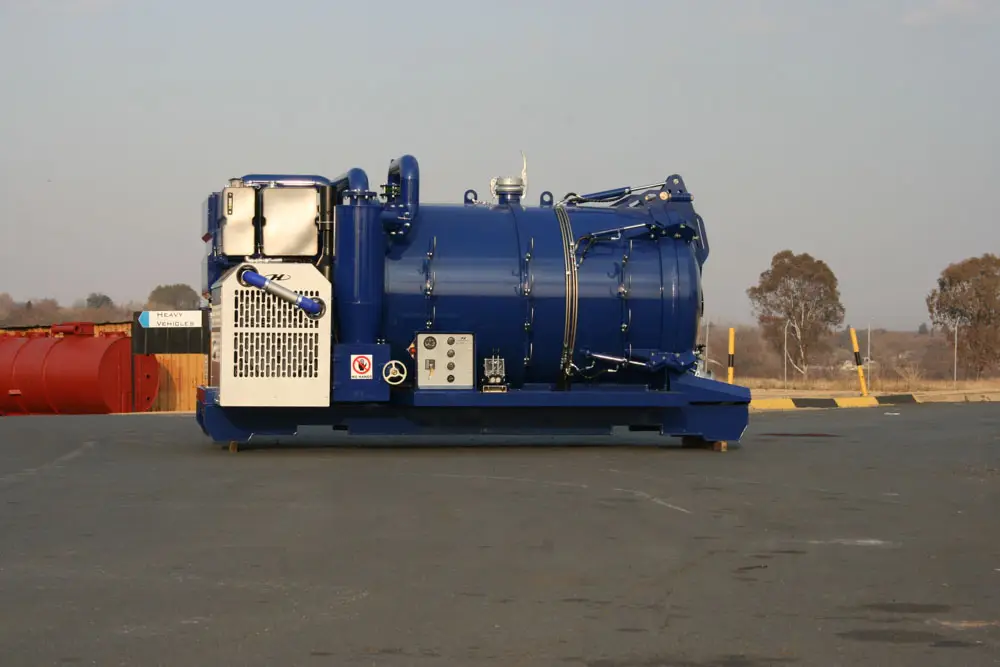

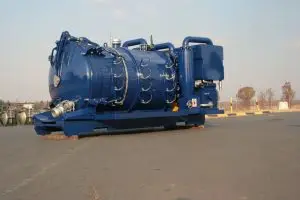

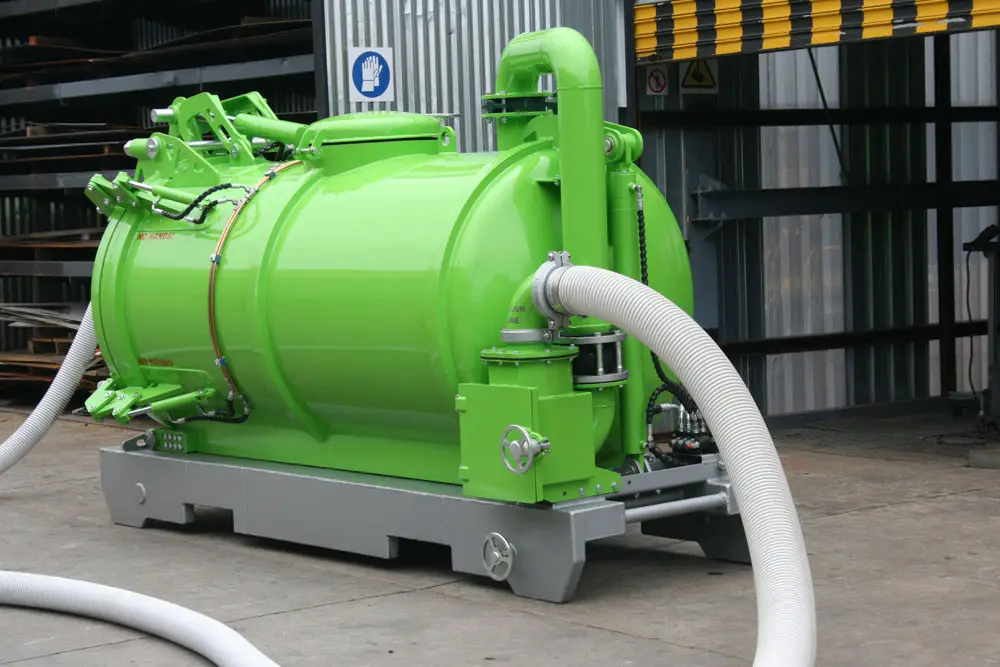

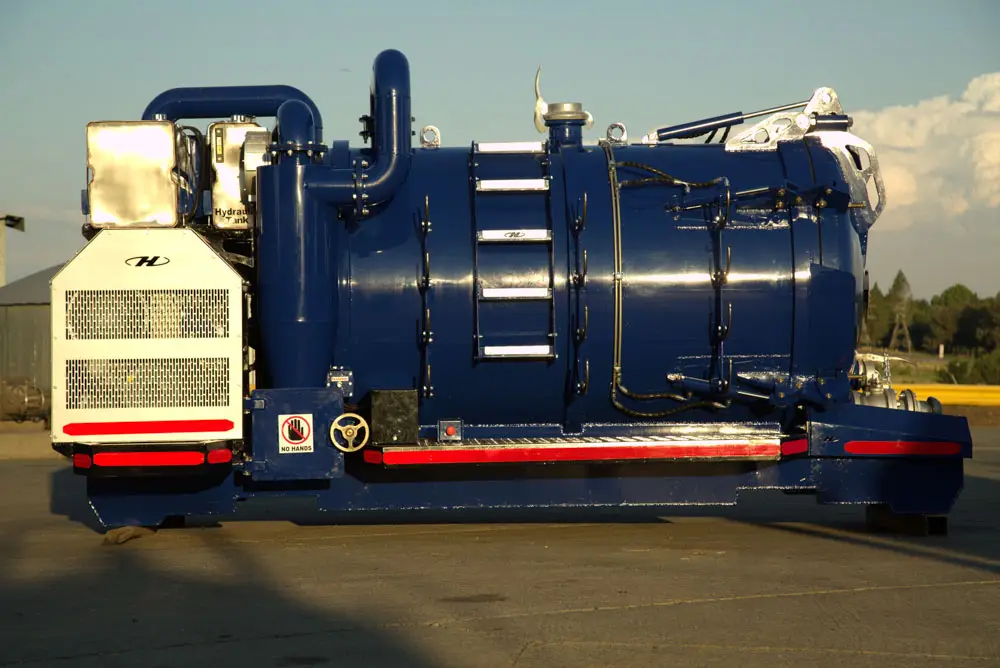

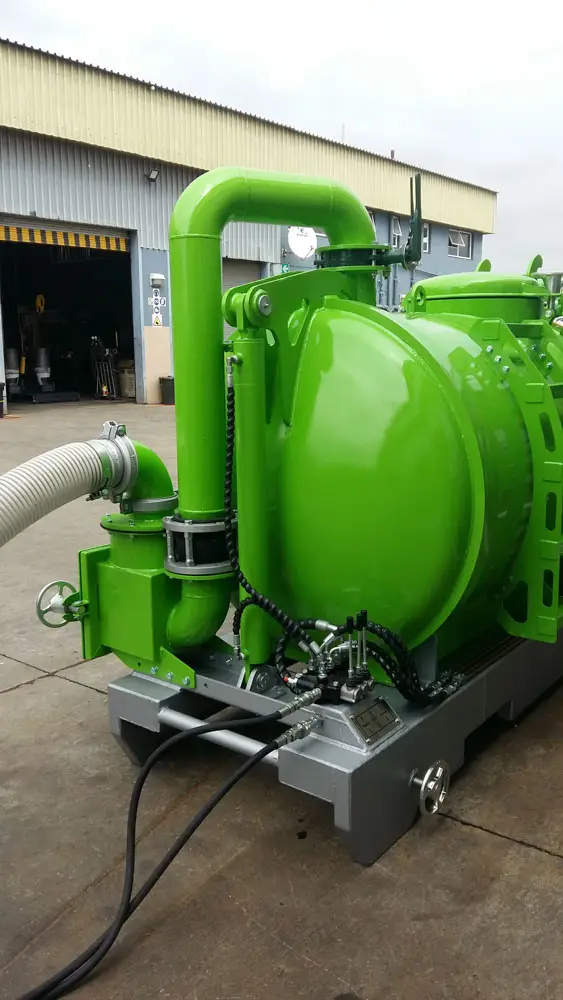

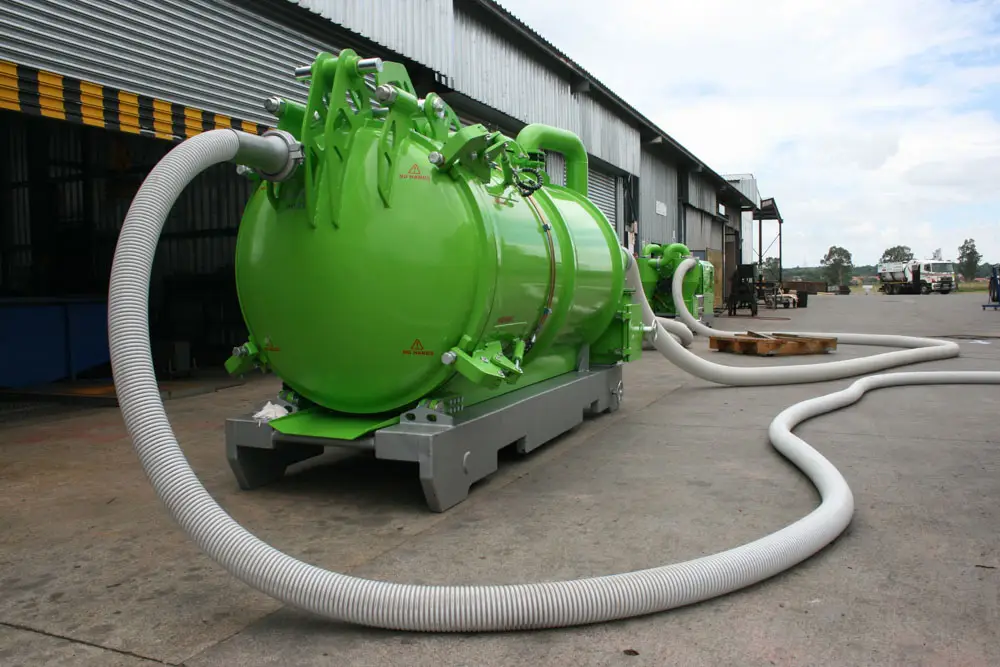

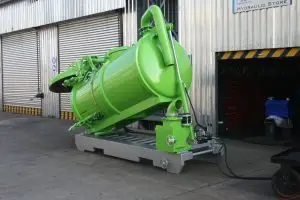

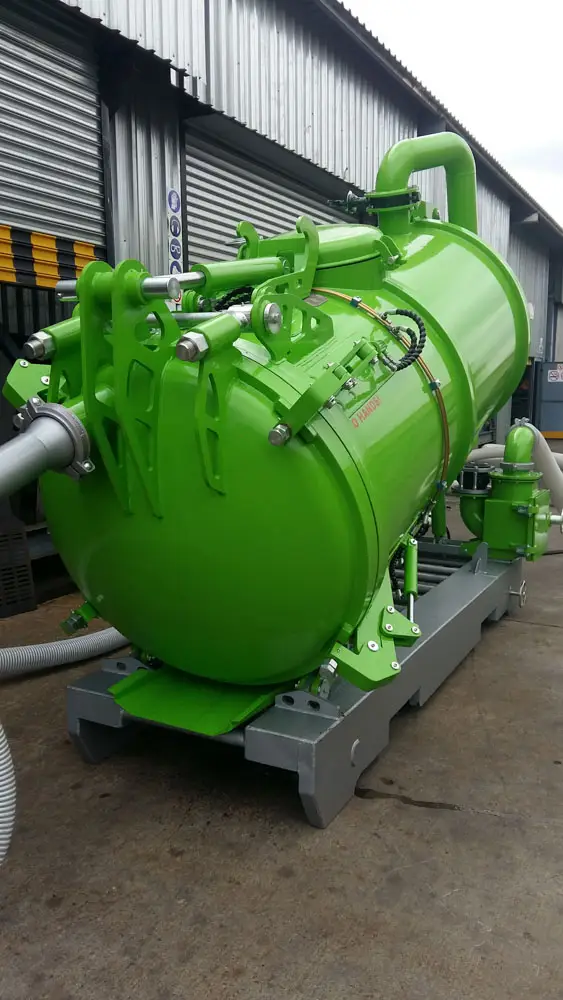

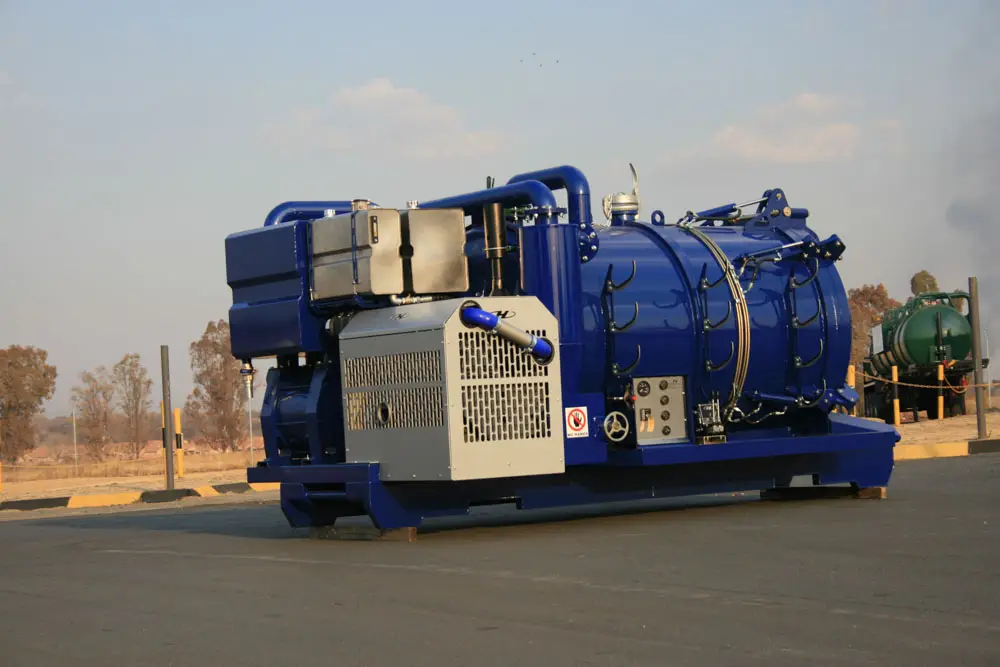

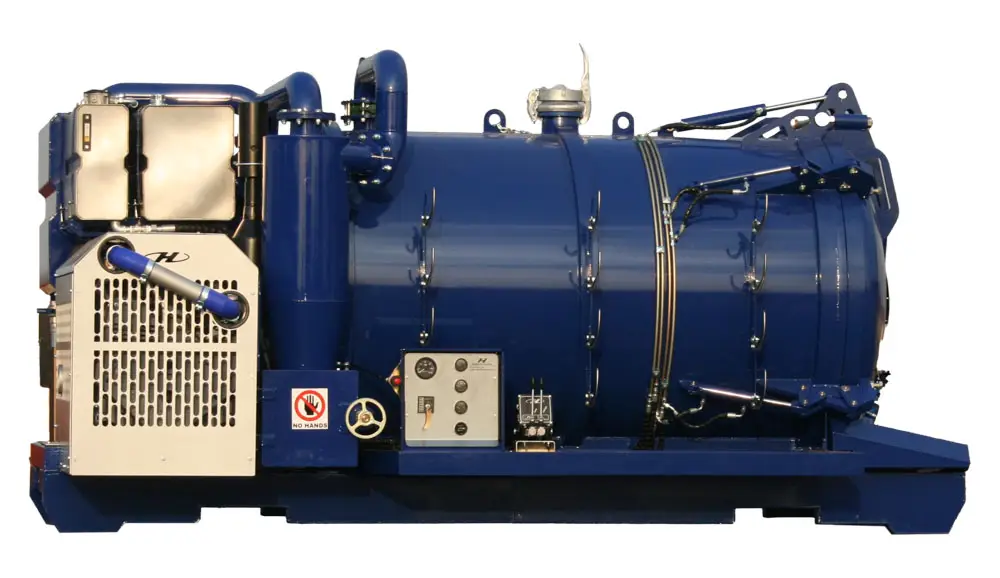

Cassette Type Vacuum Unit
Diesel powered and self-contained
3 cubic metres

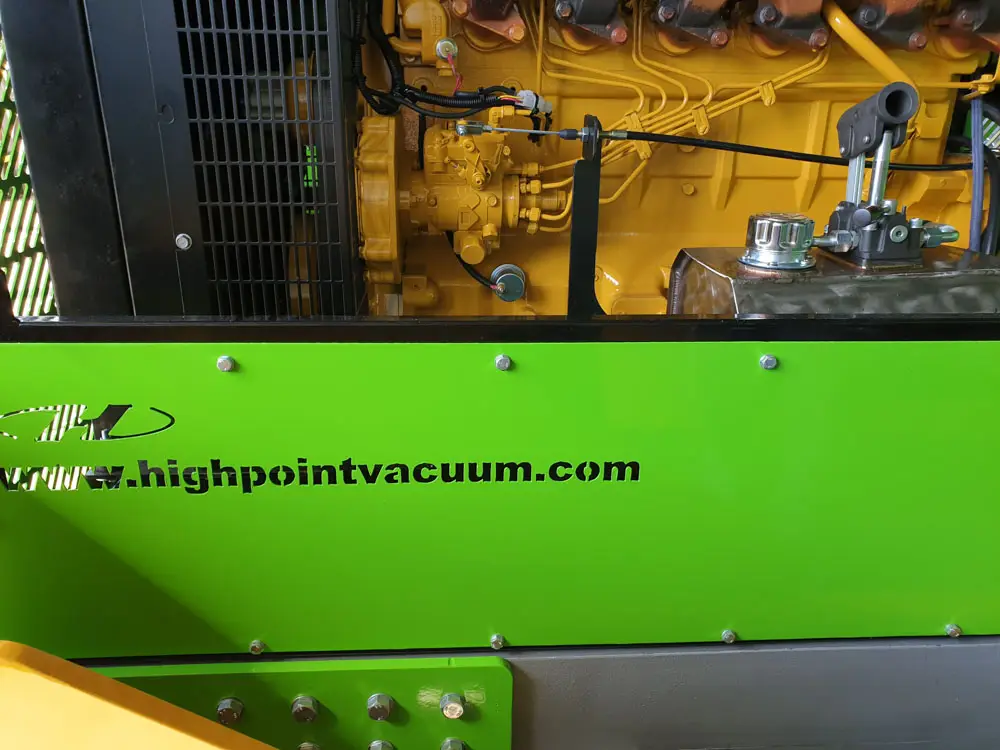

Air-cooled turbo diesel engine
Starting From: R 1,200,000 ex VAT
Chassis not included.
Diesel powered and self-contained
3 cubic metres
Air-cooled turbo diesel engine
Starting From: R 1,200,000 ex VAT
Chassis not included.

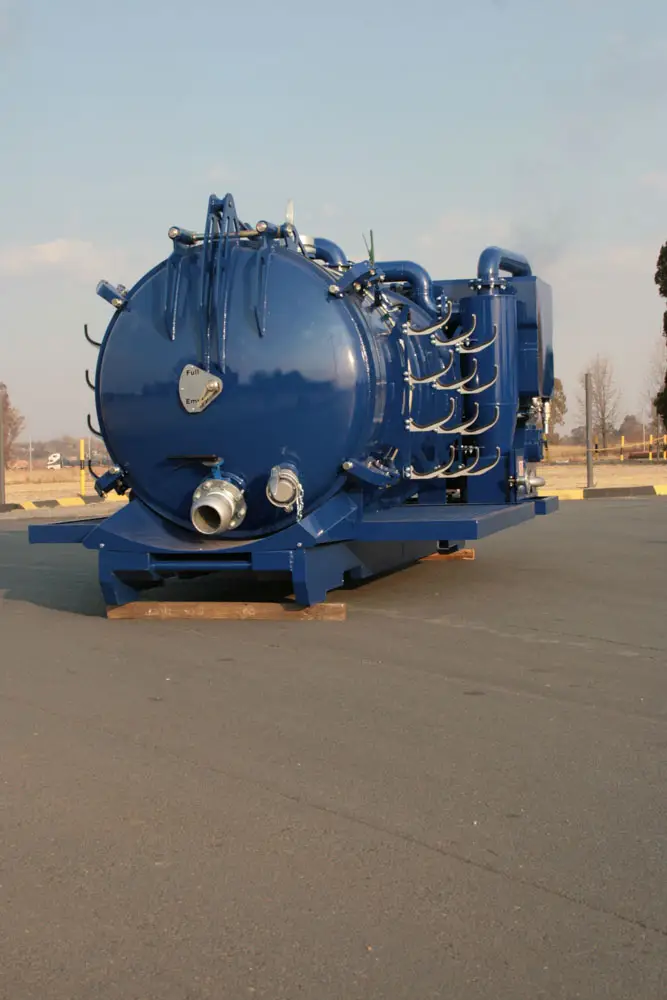

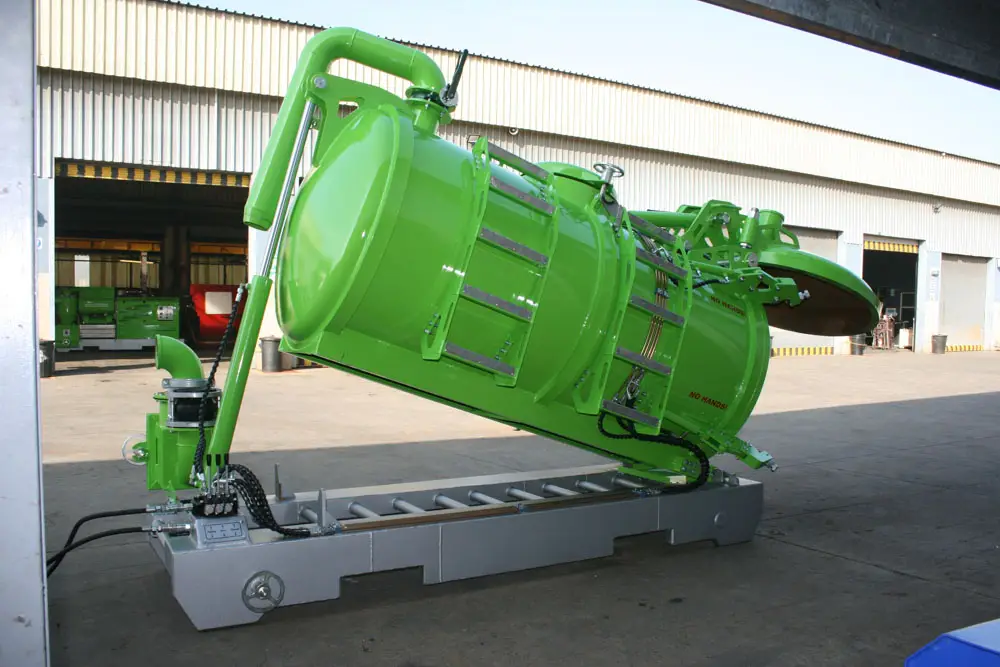

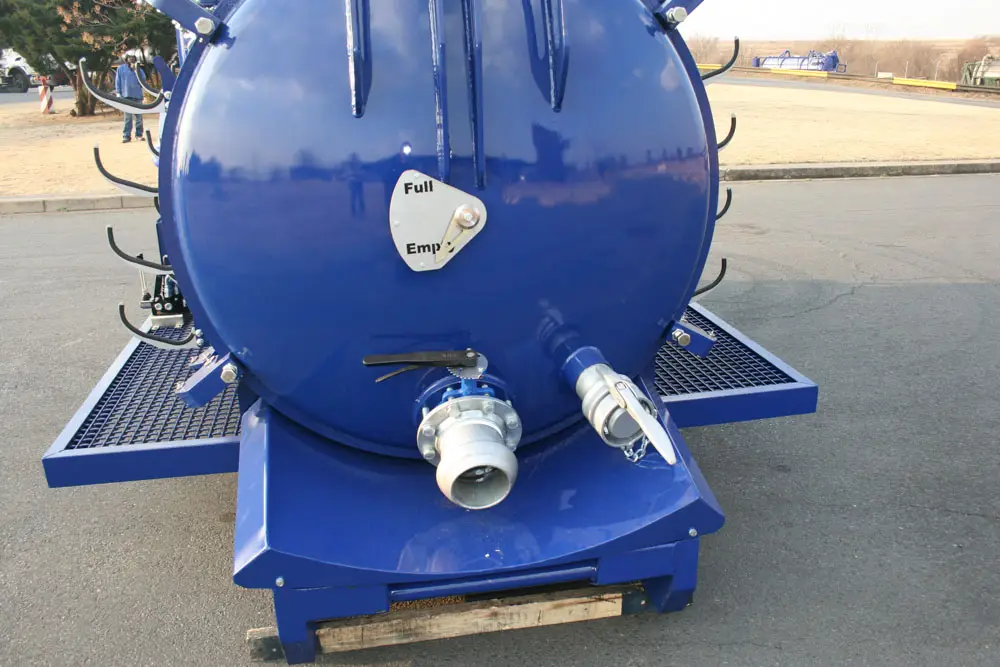

High mobility and versatility. Diesel powered and self-contained, this unit continues to impress in the trackless sector where set-up time is critical. Tank size is 3 cubic metres but can be increased depending on what platform is used, for safety to the operators the rear door opens fully with on board hydraulic system.

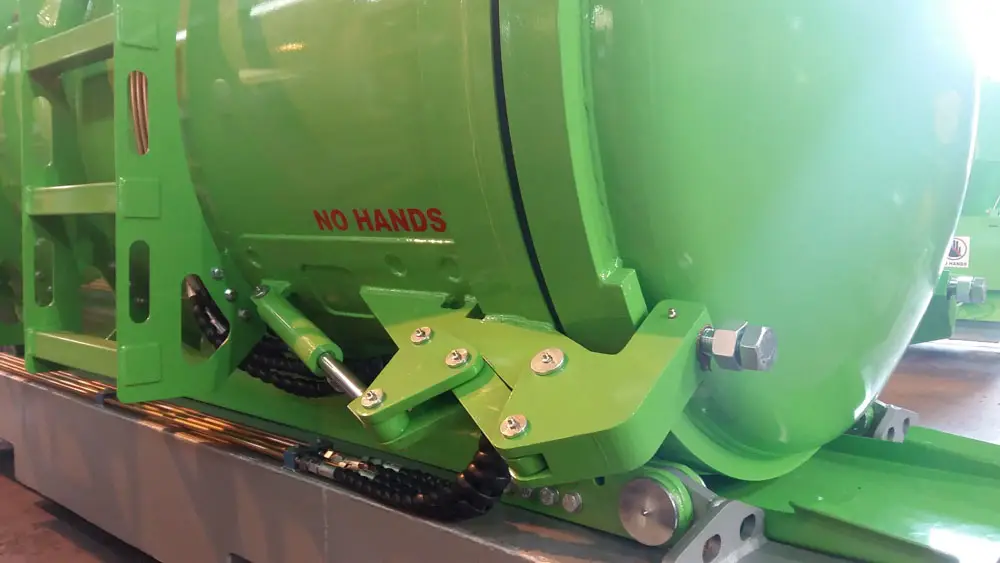

Clamps on the door has fail-safe mechanical lock that prevents accidental spillage while moving. The unit has an air-cooled turbo diesel engine driving the pump through a reduction gearbox.

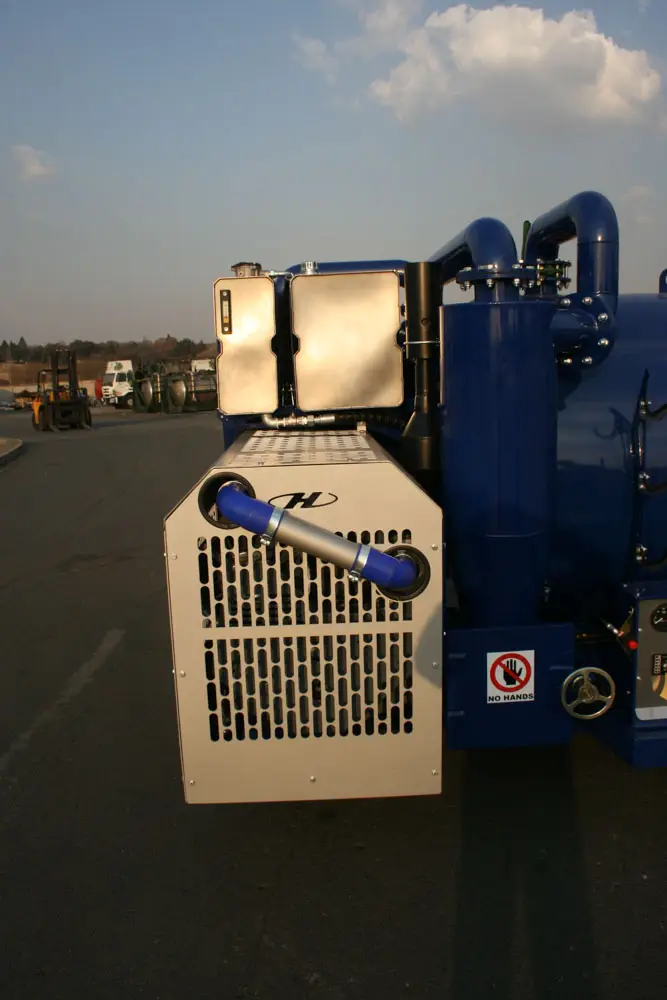

- 110 kW Air cooled diesel engine.
- 6 cylinder turbo.

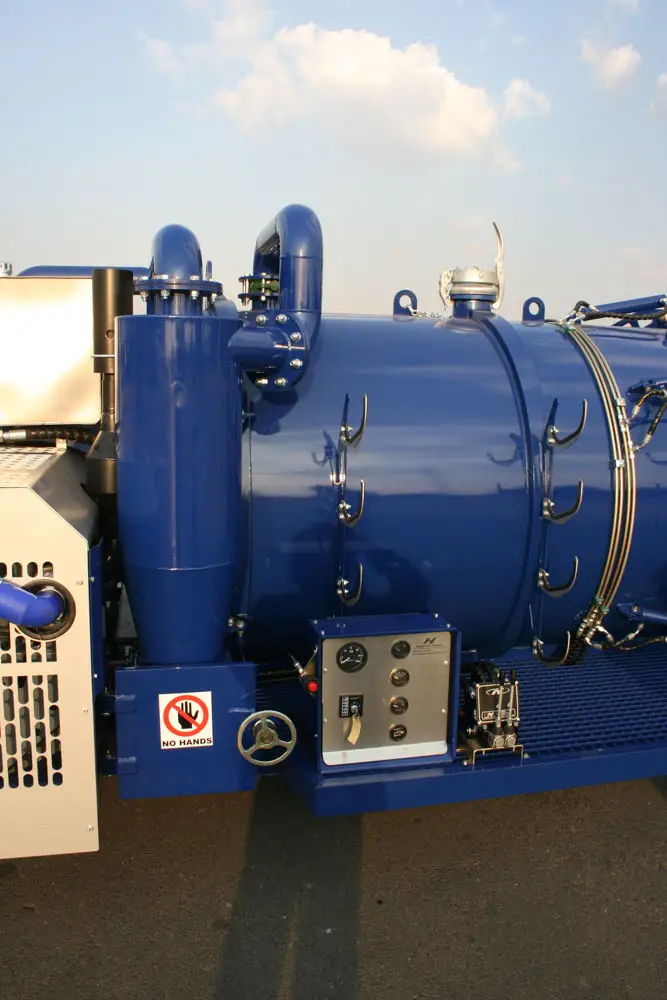

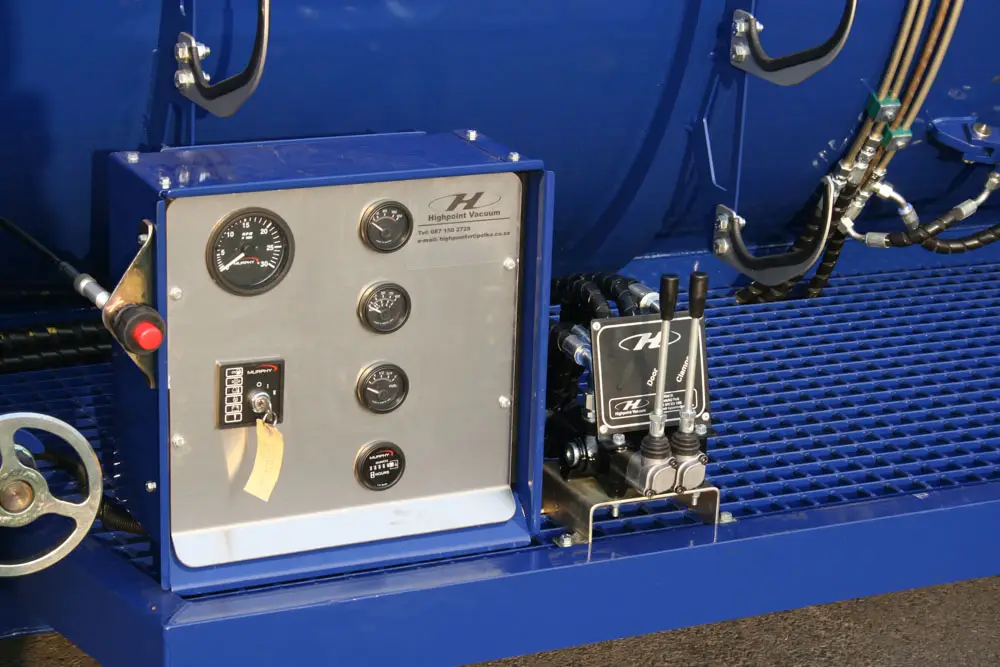

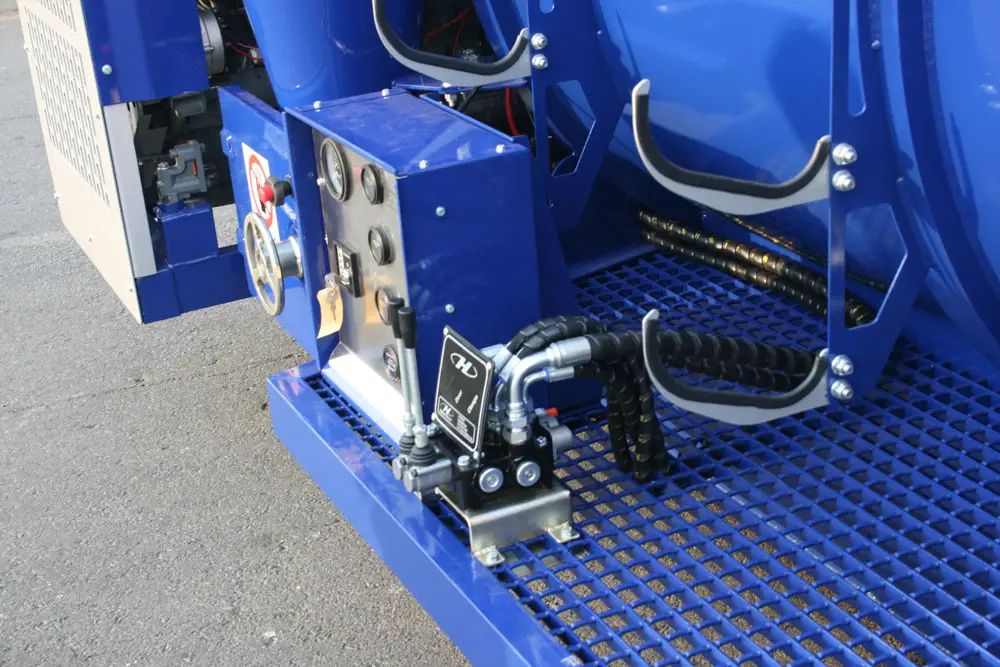

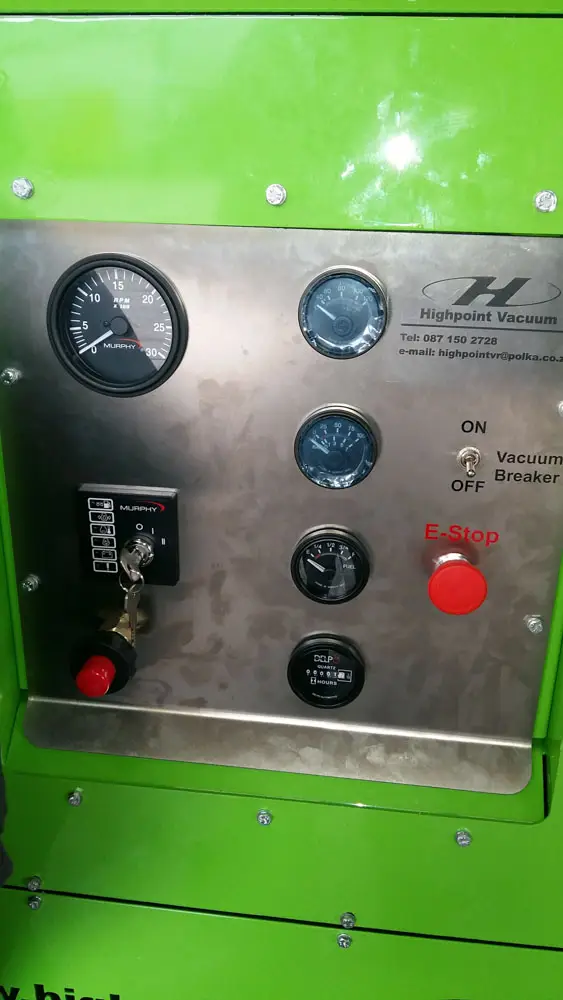

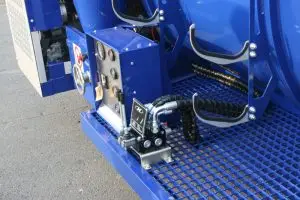

- Engine control panel with gauges and engine protection system.

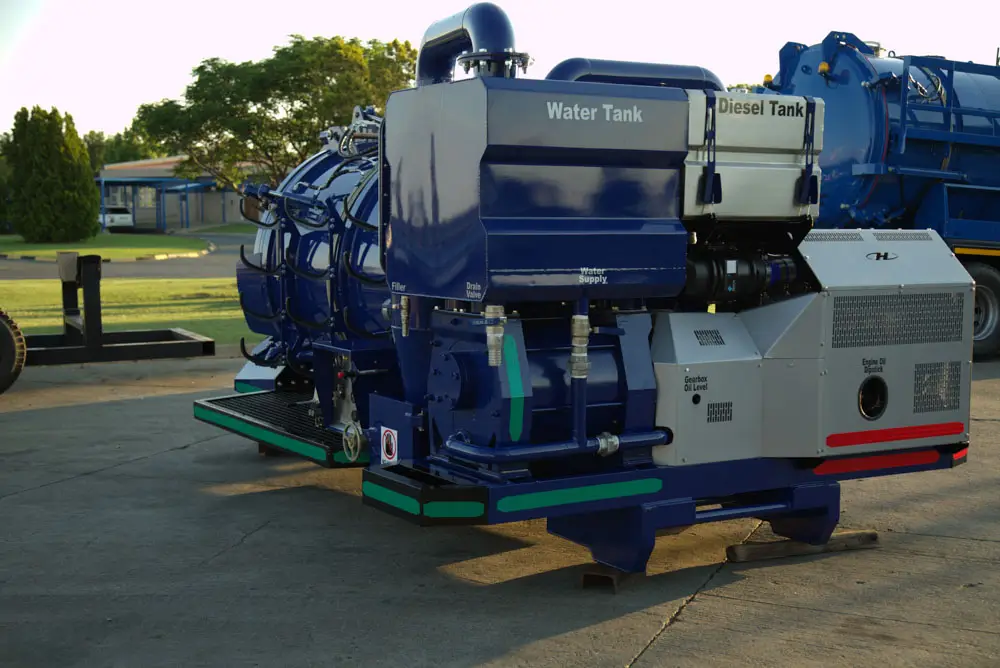

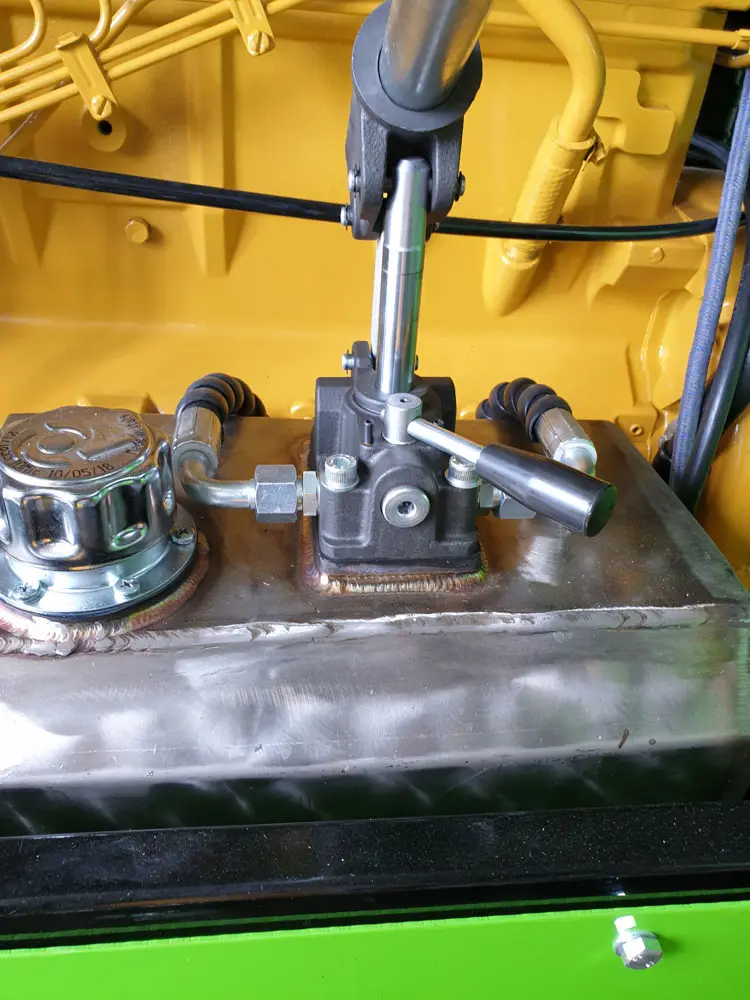

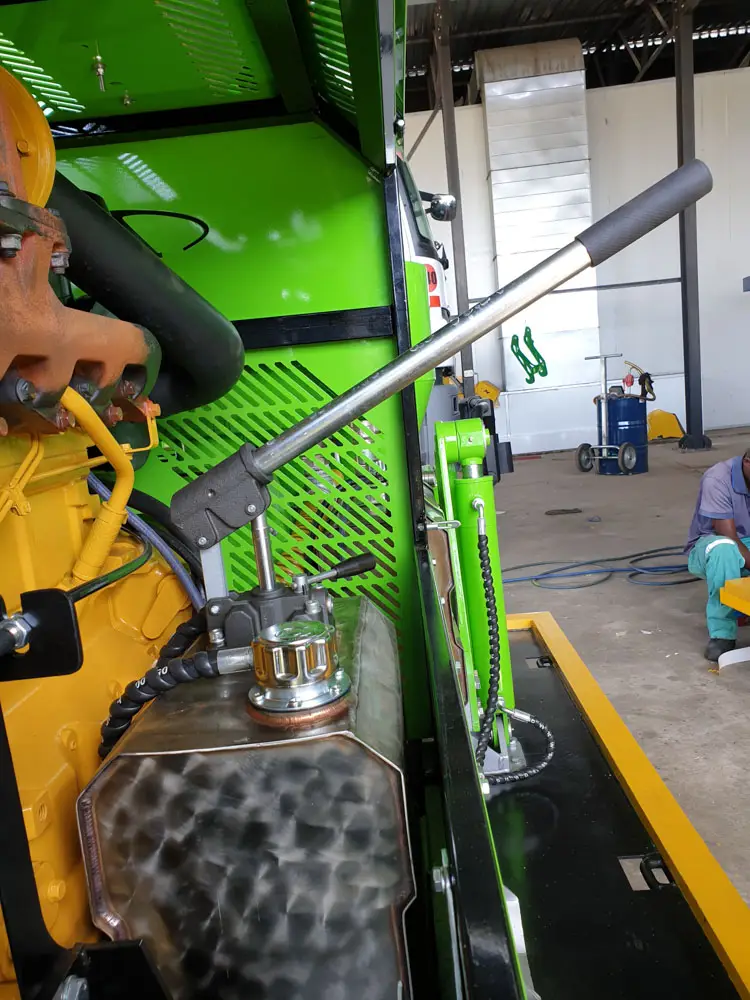

- Stainless Steel diesel tank and hydraulic tanks.
- Reduction gearbox pump drive.
1200 cfm and up to -80 kPa (G).

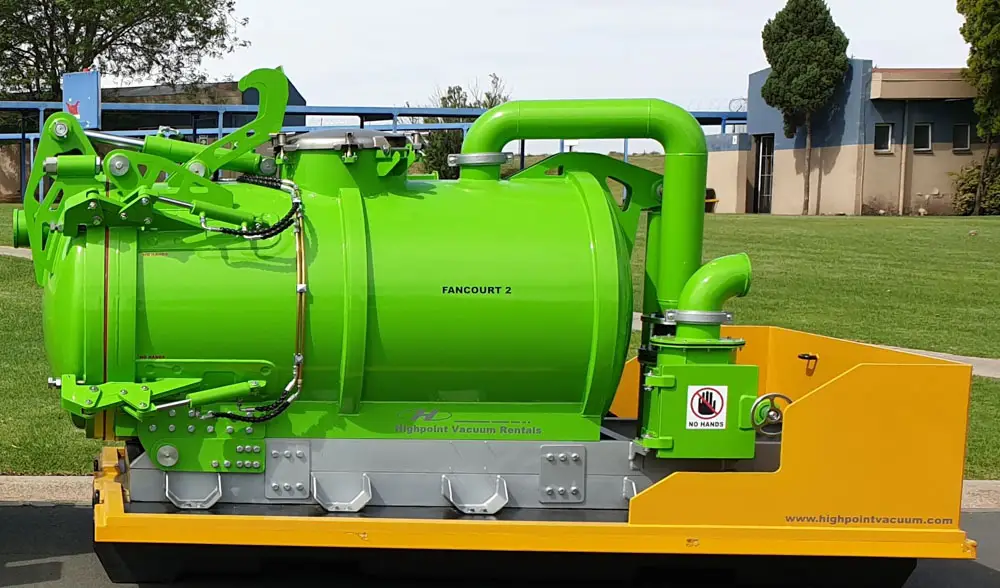

- 3m3 capacity, mild steel construction.
- 6 mm shell.

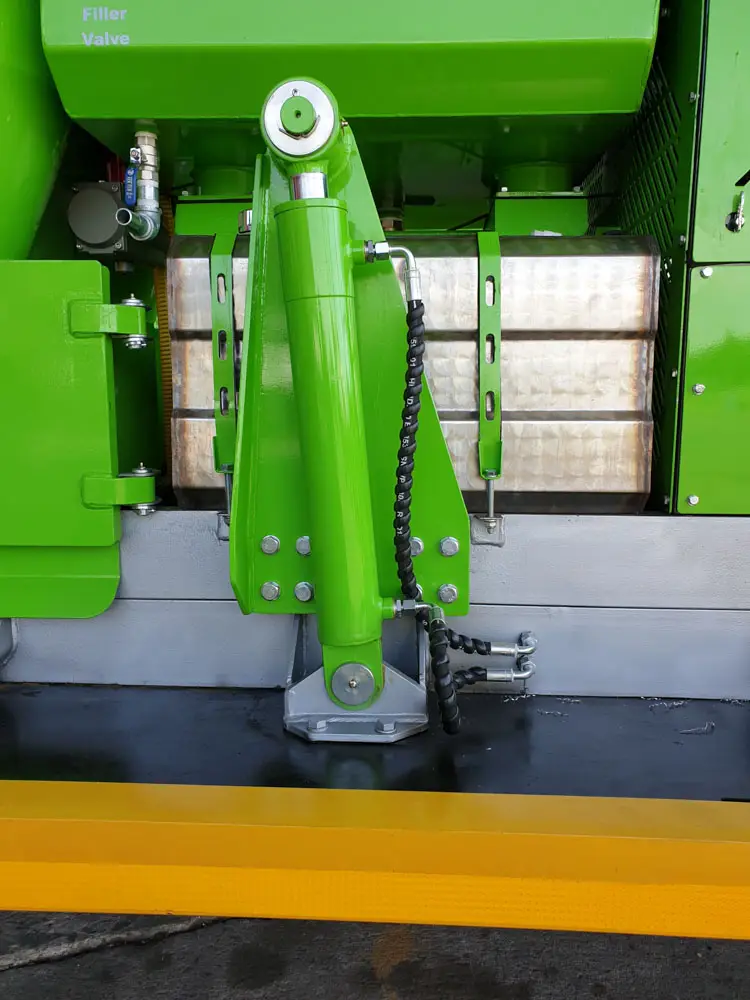

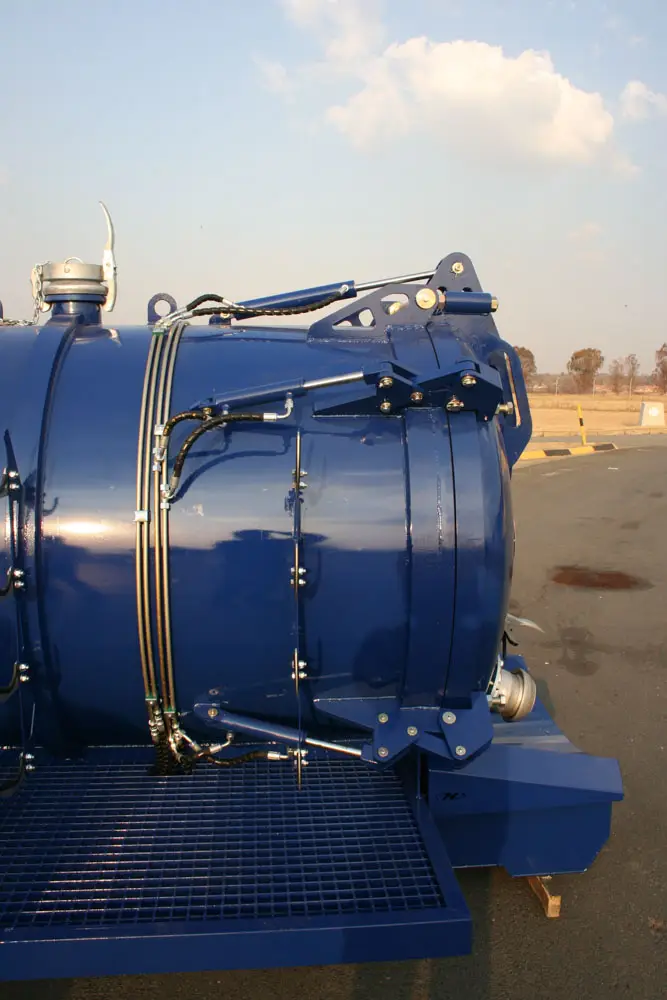

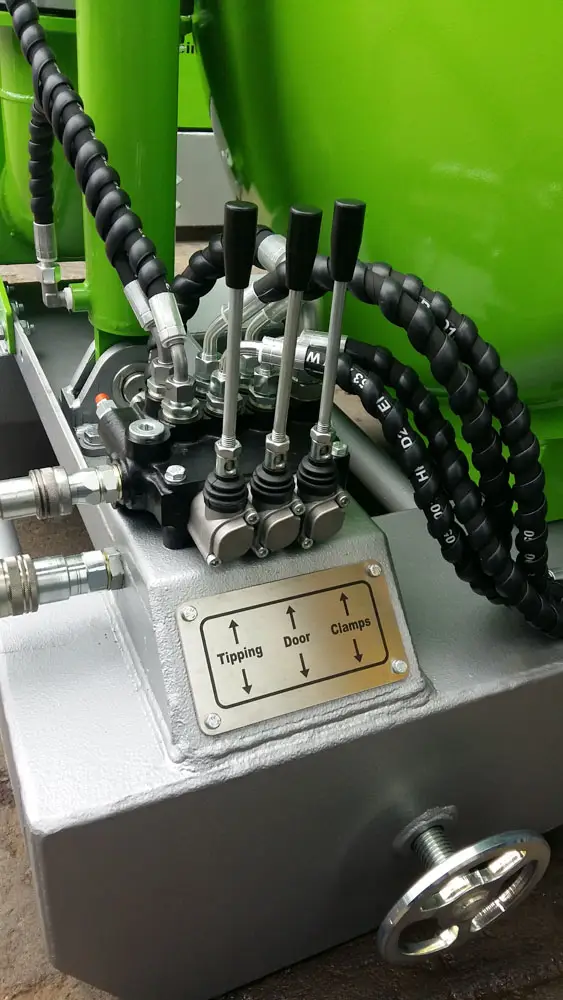

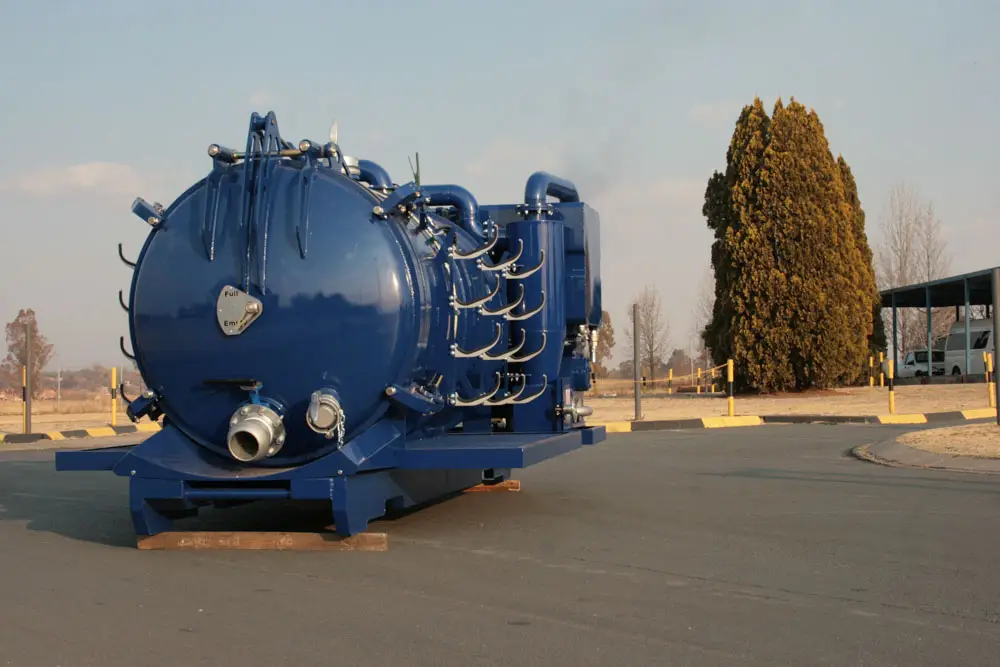

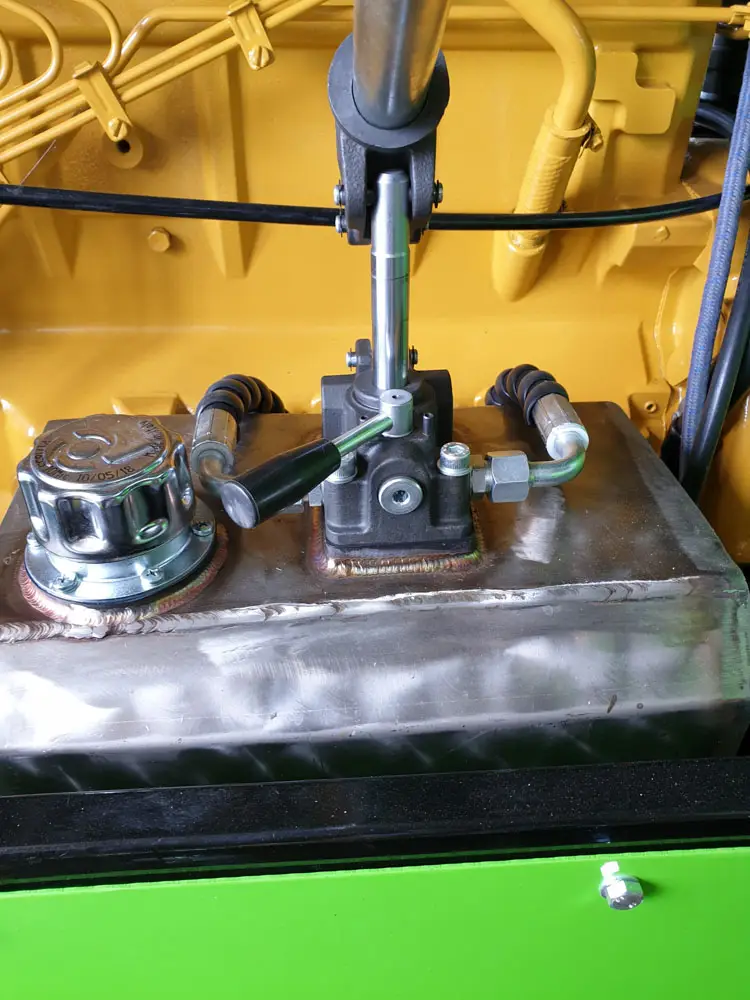

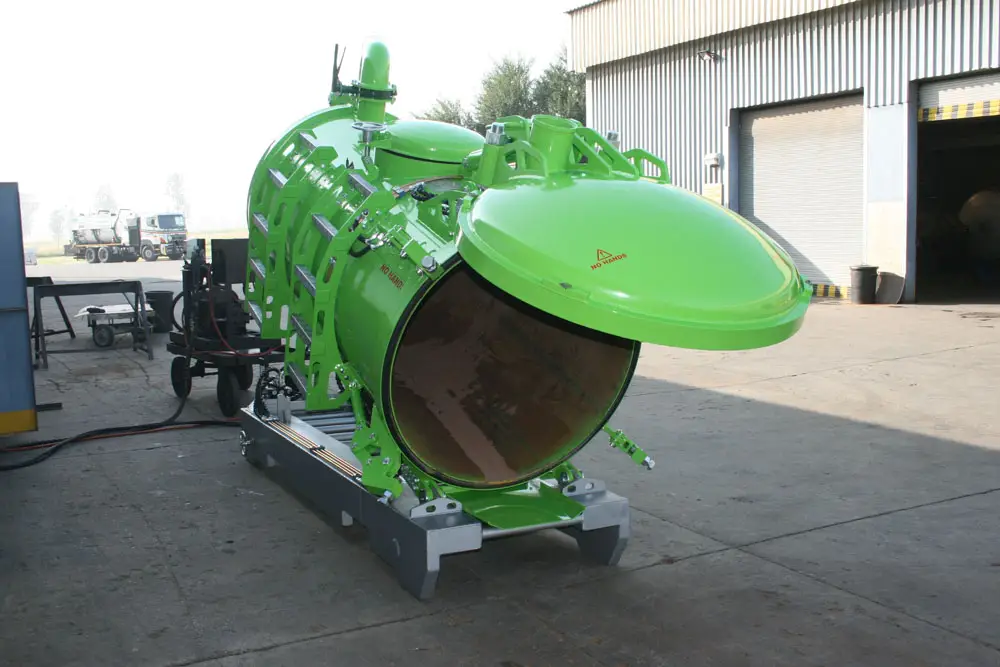

- Hydraulic opening door.

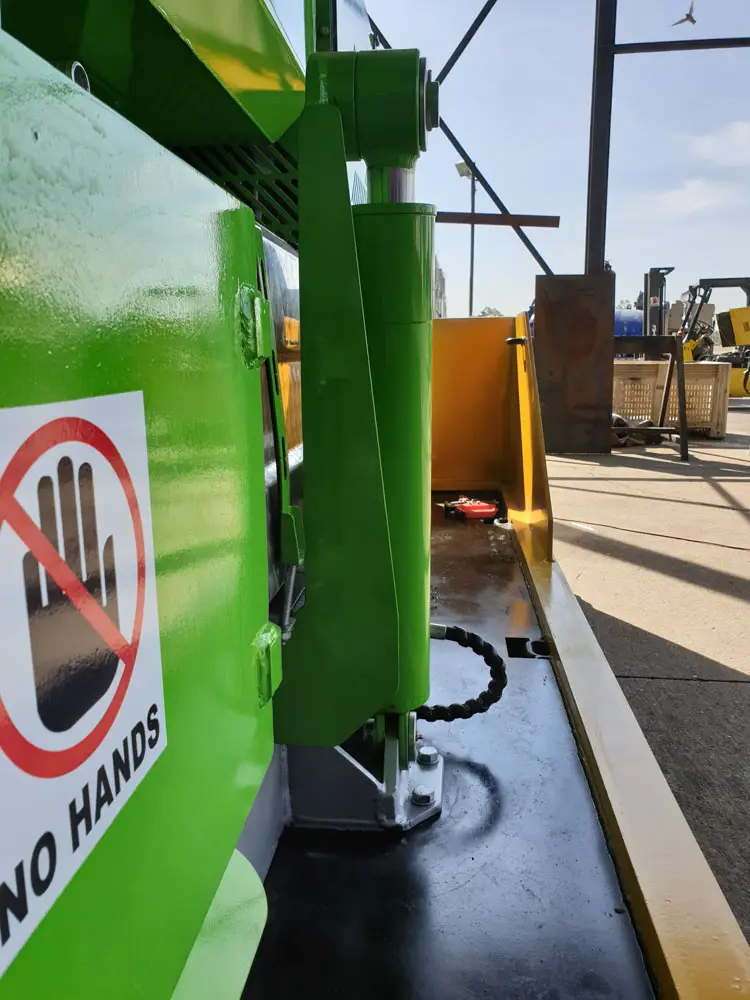

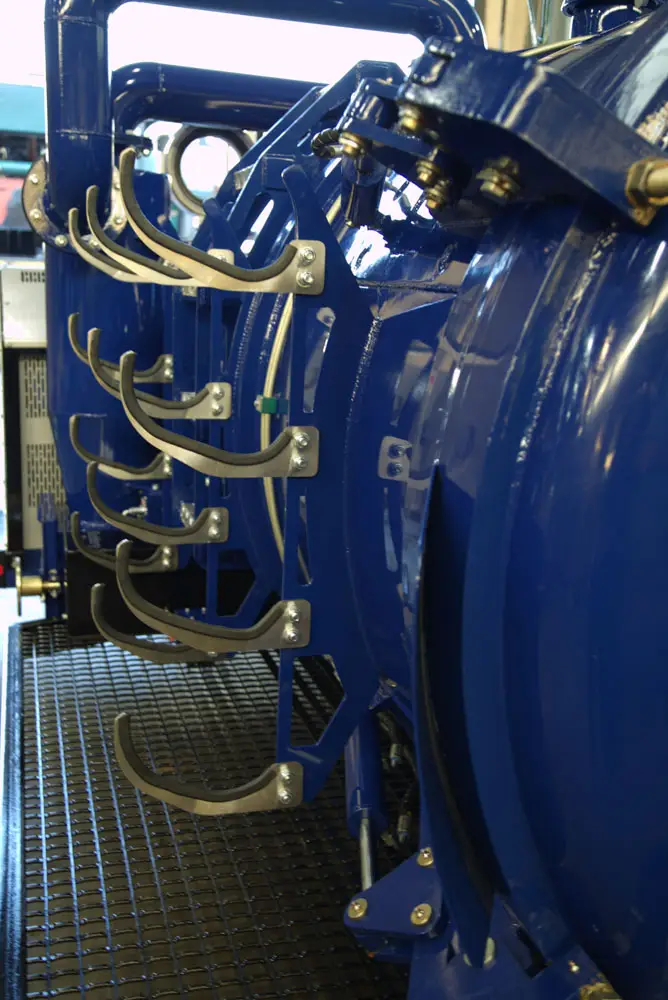

- Hydraulic clamps with mechanical loc
4 800 x 2 400 x 2 100 mm

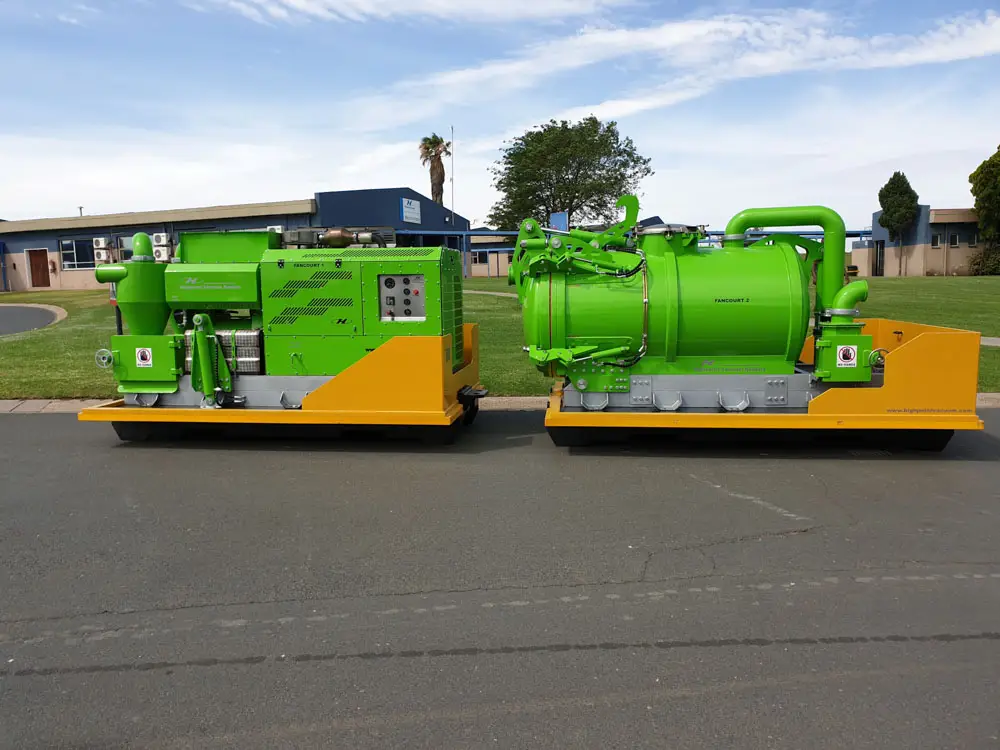

Modular design and construction allows us to carry a range of exchange components and units.
Ideal for cleaning trackless roadways, dams, tail end pulleys, spillages and mud rushes.

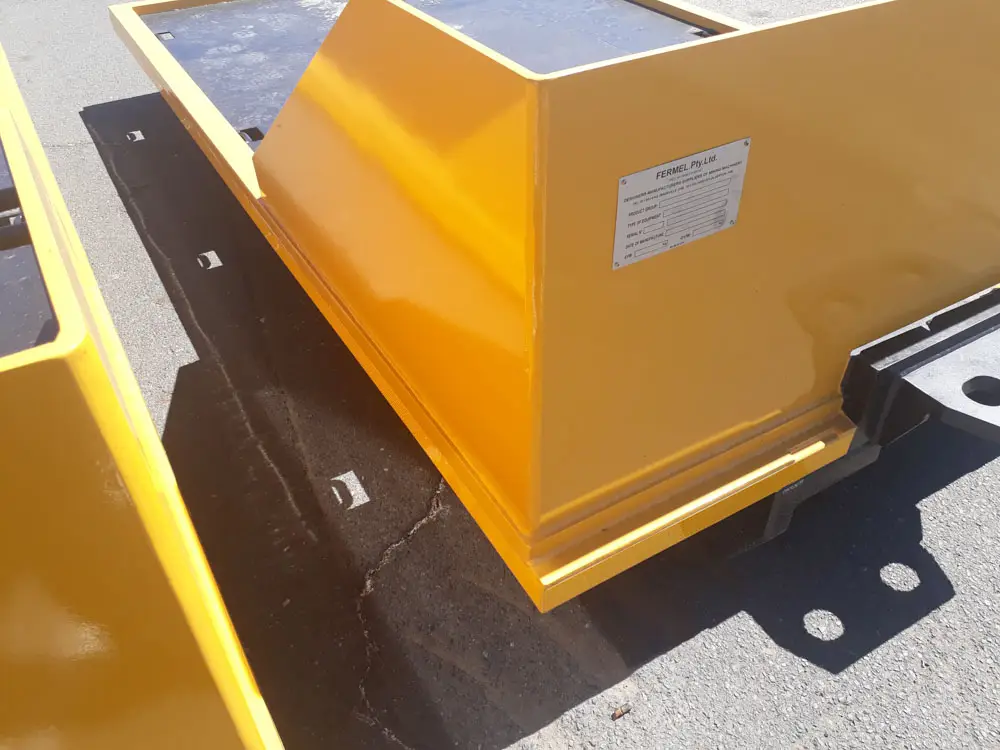

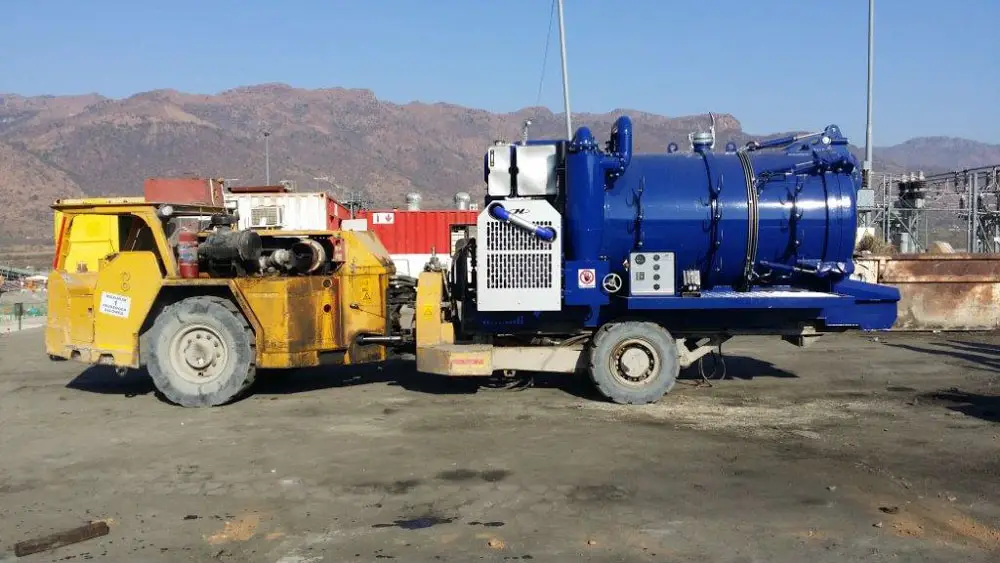

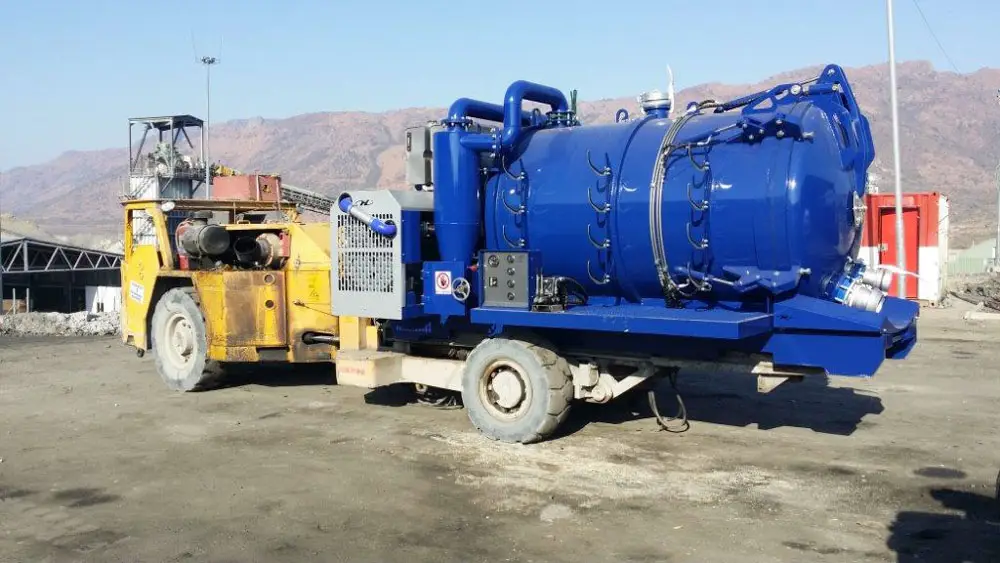

The unit can be made to fit most UV’s (Fermel, etc).

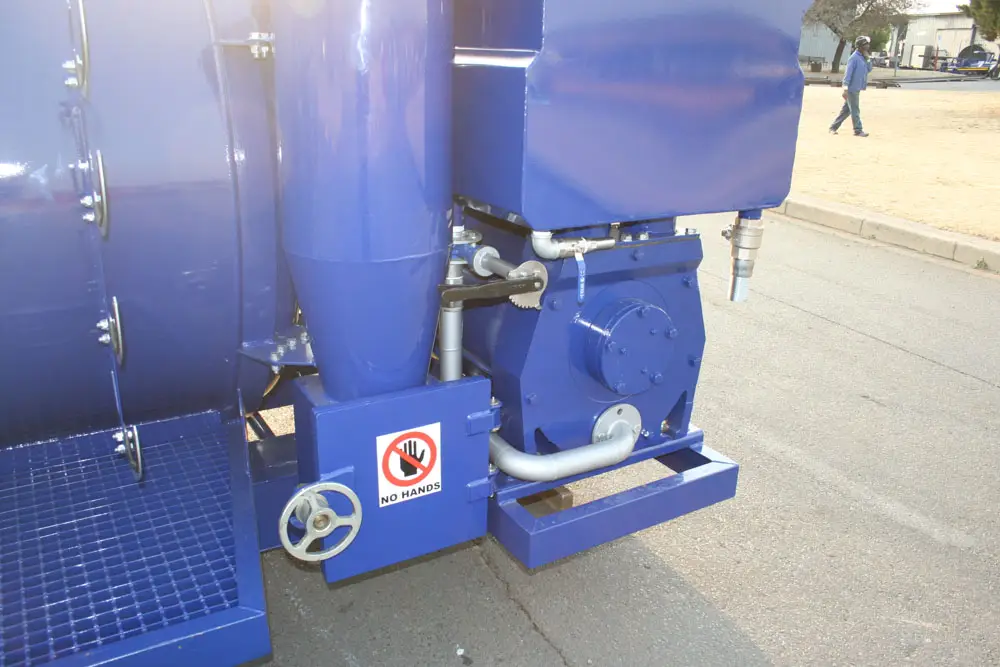

Vacuum pump driven by our own compact reduction gearbox, eliminating the use of pulleys. Reliability and minimum maintenance required.

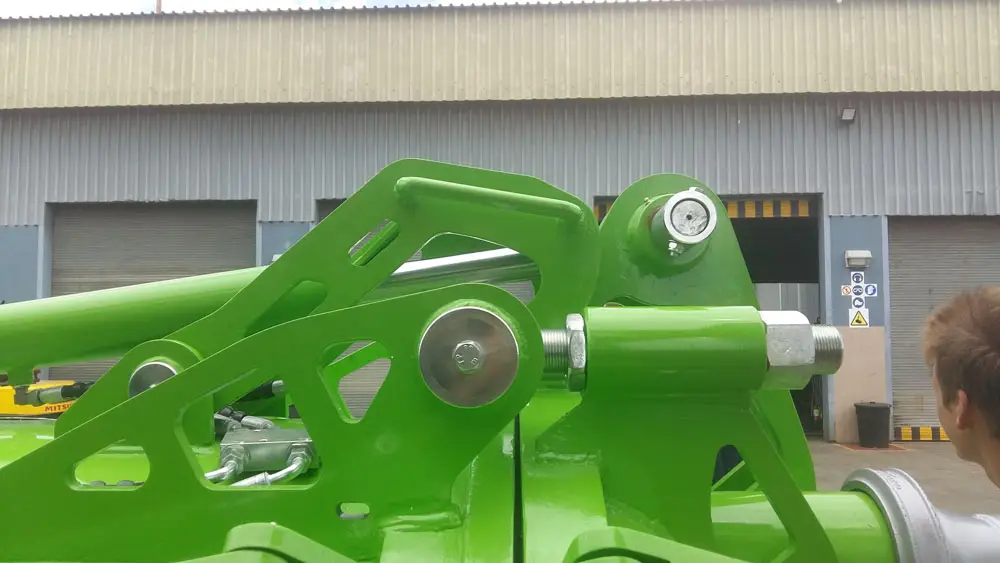

- Hydraulic suction boom
- Saddle Water Tanks
- Access walkway
- Wireless Remote
- Reverse Camera
- Washdown Gun
- Branding Panels
- Proximity Sensors
