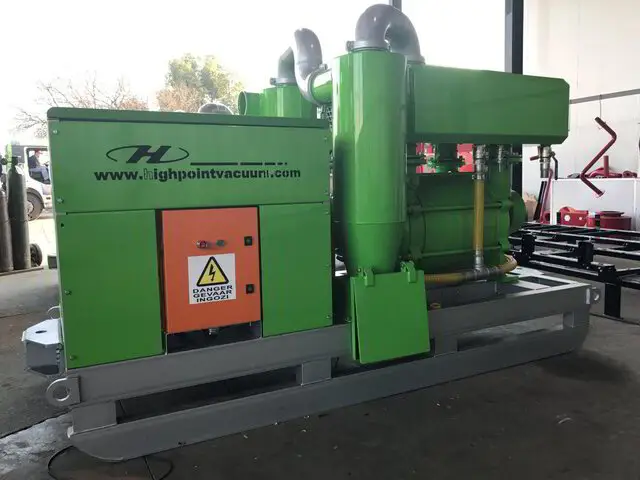

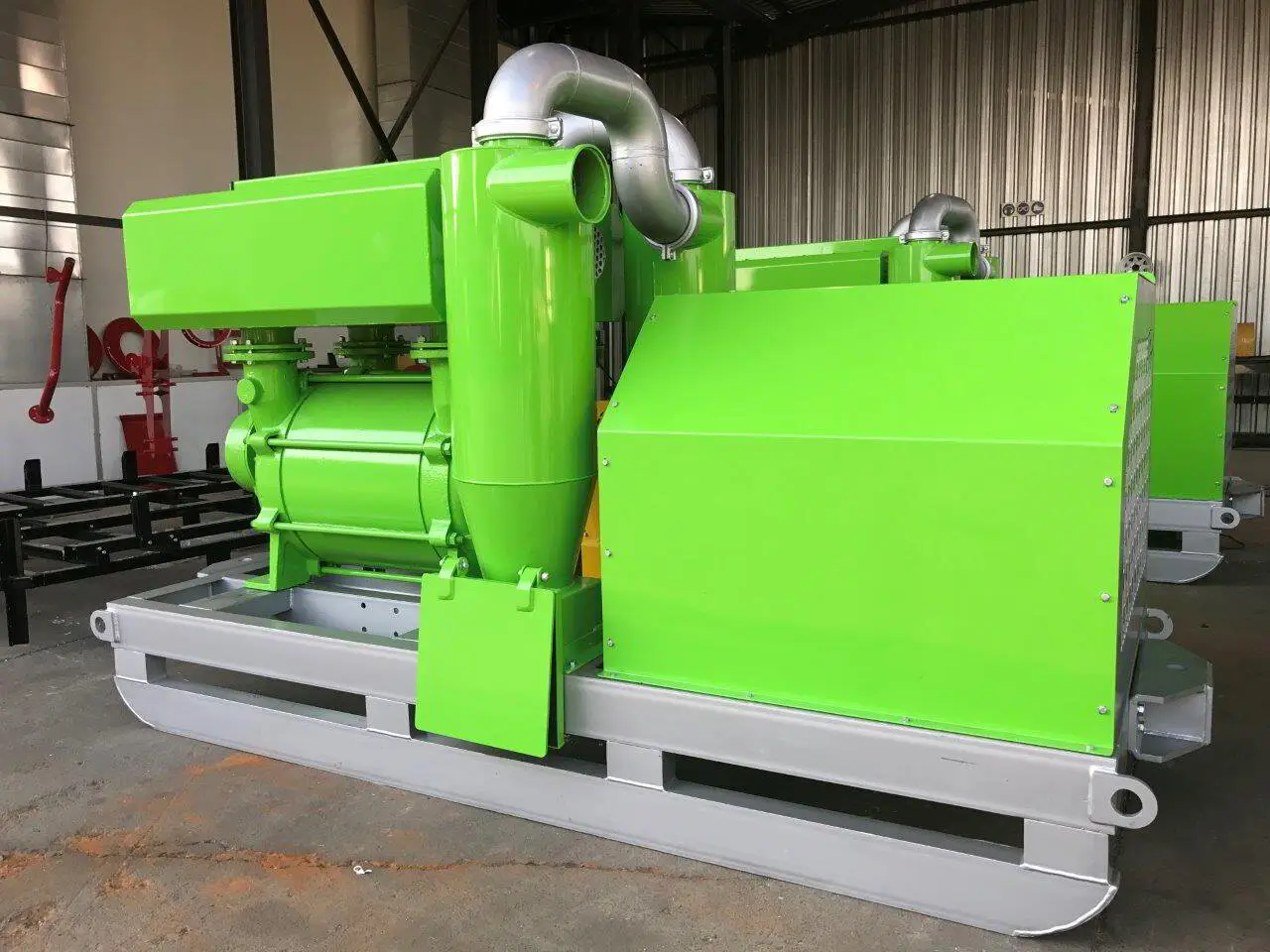

HPLR-2200 Liquid Ring
Compact 1200 cfm liquid ring
Low power consumption
Built for mobility and access restricted areas
Starting From: R 2,200,000 ex VAT
Chassis not included.
Compact 1200 cfm liquid ring
Low power consumption
Built for mobility and access restricted areas
Starting From: R 2,200,000 ex VAT
Chassis not included.
The backbone of our product range, the 2200cfm unit has been in production for over 10 years and continues to prove its versatility across the mining sector. The unit features a very robust pump specifically designed for underground conditions.
The unit is available in either skid- or wheel mounted for both trackless and conventional mines.
The unit fits into most mine cages.
- 90 kW 3 phase motor.
- 525 Volts.
- 127 Amps.
- Direct on line panel with overload protection.
2200 cfm and up to -80 kPa (G).
Modular design and construction allows us to carry a range of exchange components and units.
Proven for more than 10 years in underground applications for reliability and getting the job done. Solid design and quality manufacturing ensures that the HPLR-2200 is the leader in underground applications.
Ideal for x-cuts, panel cleaning without any product dilution (carbon based panels), belt cleaning, shaft bottoms. Maintains up to 10-15 tons per shift on panel cleaning. Can be operated in parallel to increase suction volume.
Vertical suction distance up to 20 meters (Up to 90 meters with multiple units in parallel).
Horizontal suction distance up to 200 meters depending on product.
- Hydraulic suction boom
- Saddle Water Tanks
- Access walkway
- Wireless Remote
- Reverse Camera
- Washdown Gun
- Branding Panels
- Proximity Sensors
