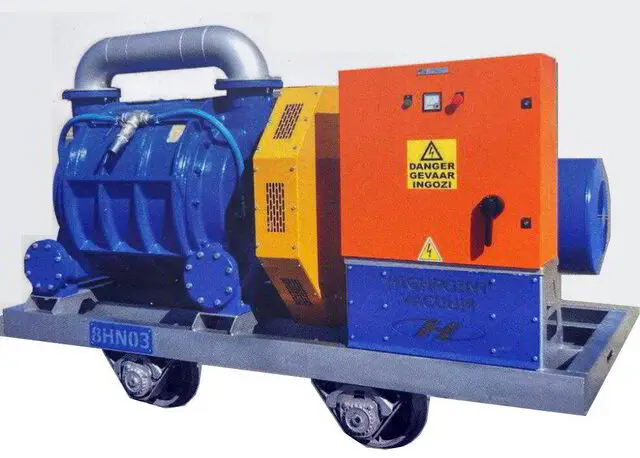

HPVR-3000 Liquid Ring
Very robust pump for underground conditions
Skid- or wheel mounted for…
both trackless and conventional mines
Starting From: R 3 380 000.00
Very robust pump for underground conditions
Skid- or wheel mounted for…
both trackless and conventional mines
Starting From: R 3 380 000.00
High powered unit for areas that require higher volumes of ore to be moved across greater distances, ideal for situations that require vertical lifts and on reef vacuum mining. The unit features a very robust pump for underground conditions. The unit is available in either skid- or wheel mounted for both trackless and conventional mines.
The unit is built on 2 platforms which fits into most cages so no need for slinging.
- 160 kW 3 phase motor.
- 525 Volts.
- 210 Amps.
- Start delta panel with overload protection.
3200 cfm and up to -90 kPa (G).
2 500 x 2 500 x 2 100 mm.
(Tramming dims 1250 x 2500 x 1 700 mm).
Modular design and construction allows us to carry a range of exchange components and units.
Our biggest offering to be used in underground applications. High efficiency with low maintenance.
Ideal for shaft bottoms, panel cleaning without any product dilution (carbon based panels), belt cleaning.
Maintains up to 30 tons per shift on panel cleaning. Vertical suction distance up to 70 meters.
Horizontal suction distance up to 200 meters (Reaching distance can be extended to 300 meters with multiple separators).
- Hydraulic suction boom
- Saddle Water Tanks
- Access walkway
- Wireless Remote
- Reverse Camera
- Washdown Gun
- Branding Panels
- Proximity Sensors
